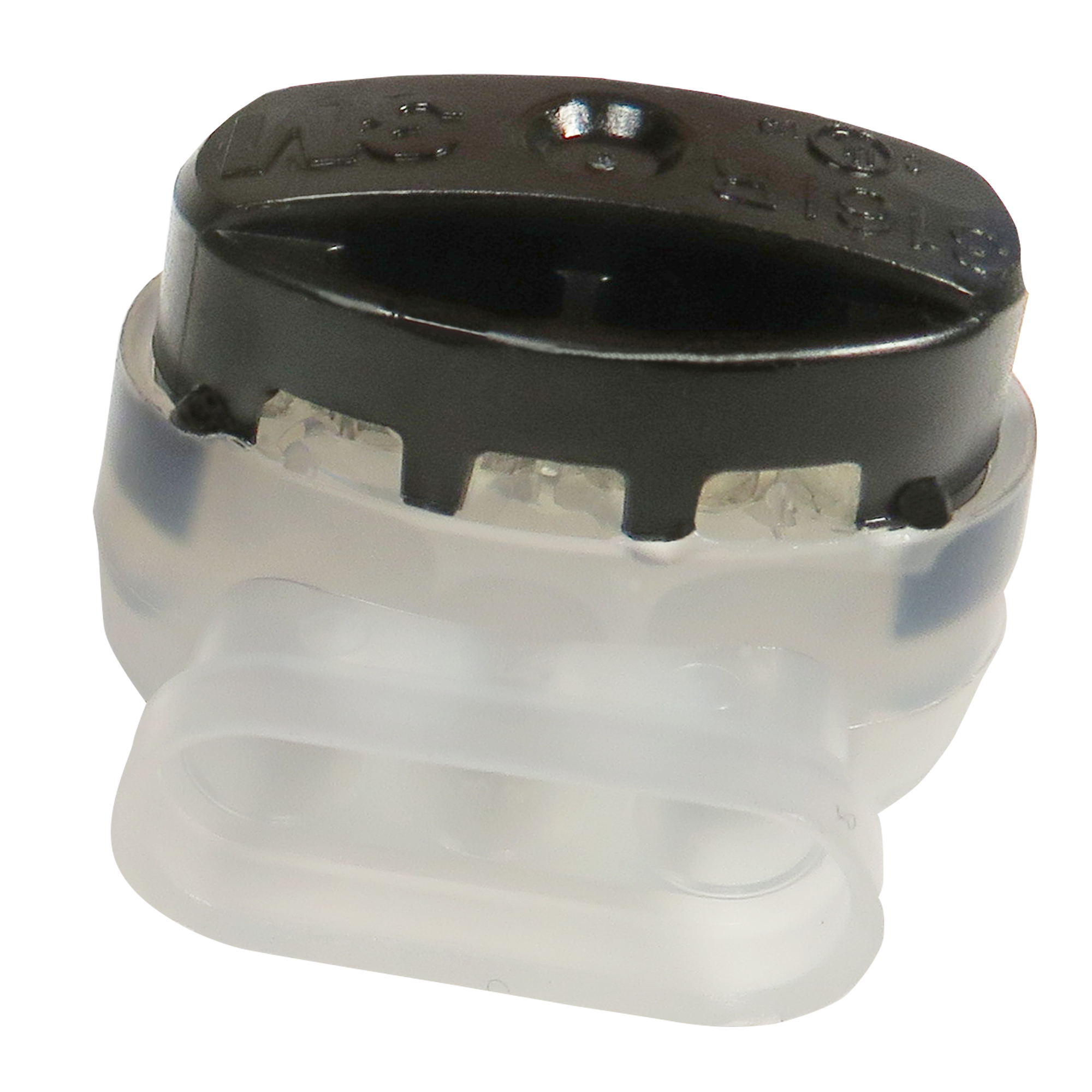

PinPoint Connector

Suitable for applications requiring moisture and UV protection, the PinPoint connectors can electrically connect 2-3 wire ends. They can accommodate 22-14 AWG.
Suitable for applications requiring moisture and UV protection, the PinPoint connectors can electrically connect 2-3 wire ends. They can accommodate 22-14 AWG.

Features

  • Used to electrically connect 2-3 wire ends
  • Insulated connection with moisture-resistant seal
  • Flame Retardant Nylon insulator
  • Compatible with PinPoint conduits
  • Frequently used in FTTH installations
  • UV-resistant housing
Ask your question
PinPoint Connector

Product Information

Part # Description Packaging
20095864 PinPoint Connector Crimper Each
20005541 PinPoint Wire Connector 22-16AWG Case
20095399 PinPoint Wire Connector 22-14AWG Case

Downloads

Specifications
DL_PinPoint Connector_6.24
