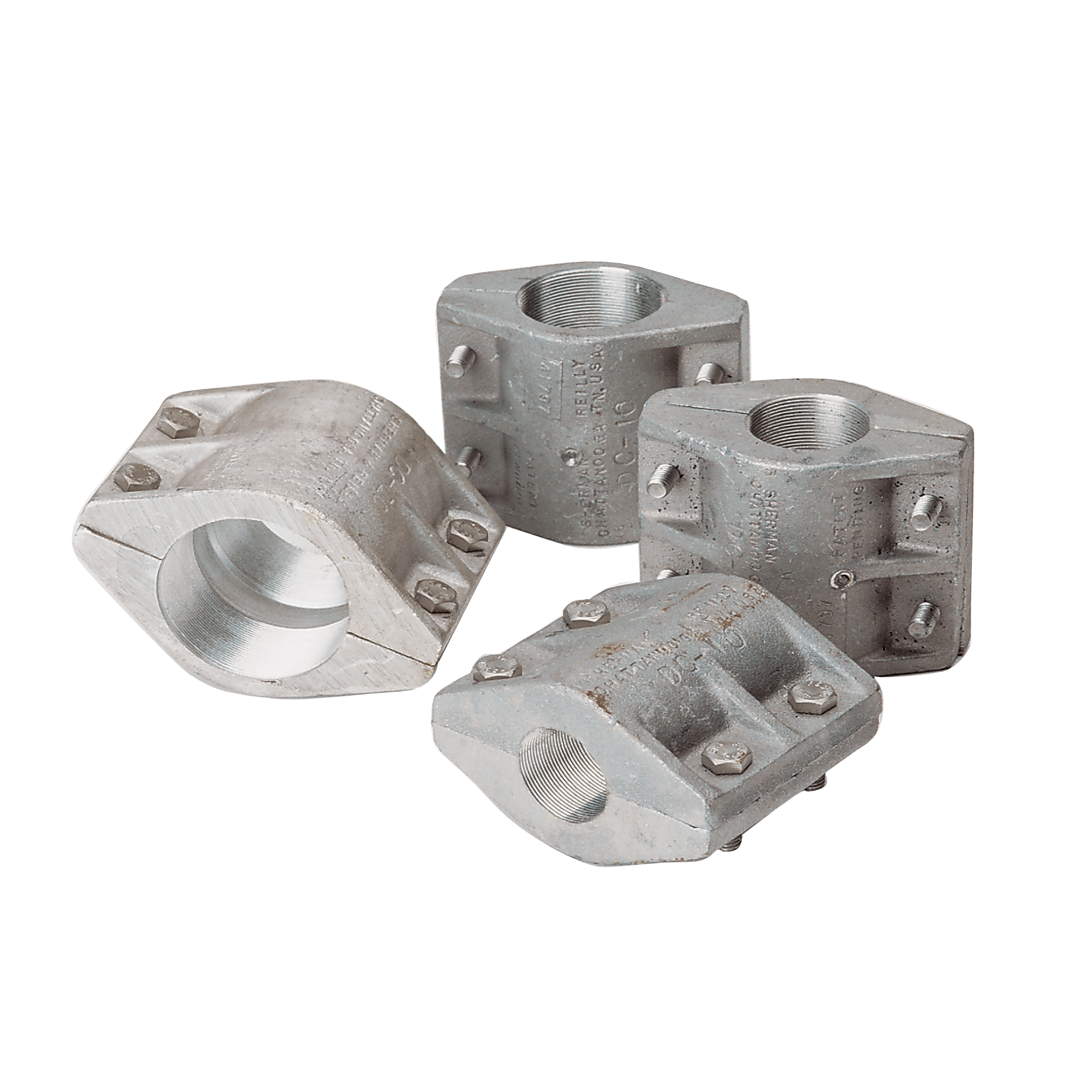

DC-10 Split Coupler

The DC-10 Split coupler is a 2-piece aluminum coupler that provides a water-tight and air-tight connection in buried and underground applications with a high pull-out strength. The clam-shell design allows users to easily access the cable after the coupler is installed. A duct holder tool is also available to aid in installation.
The DC-10 Split coupler is a 2-piece aluminum coupler that provides a water-tight and air-tight connection in buried and underground applications with a high pull-out strength. The clam-shell design allows users to easily access the cable after the coupler is installed. A duct holder tool is also available to aid in installation.

Features

  • High pull-out strength
  • Easy Installation
  • 2-piece split design with 4 bolts
  • Reusable
Ask your question
DC-10 Split Coupler

Technical Specifications

Part # Description Nominal OD (in.) OD Working Range (in) Pull Out Strength (lb) Packaging Amount of Items/Case
20001848 1" DC-10 Hybrid 1.35 1.340 - 1.360 1075 Each 1
20003092 1" DC-10 SDR 11/13.5 1.315 1.305 - 1.325 1000 Each 1
20001952 1 1/4" DC-10 SDR 11/13.5 1.66 1.650 - 1.670 970 Each 1
20001849 1 1/4" DC-10 True SIDR 9 1.59 1.580 - 1.600 1500 Each 1
20003660 1 1/2" DC-10 SDR 11/13.5 1.9 1.890 - 1.910 1100 Each 1
20003326 DH-10 Duct Holder Tool - - - Each 1

Downloads

Specifications
DC10 Coupler TDS 9.24

Other couplers

Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL/UL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.

Shur-Lock II

Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL/UL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.
Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.

Clear-Lock

Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.

Redi-Lock

The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.
The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.

Split-Lock +

The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.
Reverse-threaded aluminum coupler. Tapered threads accommodate a wide range of conduit OD's within a given conduit size. Also available in a Riser/Plenum rated version.

Aluminum Threaded

Reverse-threaded aluminum coupler. Tapered threads accommodate a wide range of conduit OD's within a given conduit size. Also available in a Riser/Plenum rated version.
The Clear-Lock Couplers and PinPoint Splices in one simple package. All the advantages of the Clear-Lock couplers with water-tight connectors for the PinPoint locatable duct in one simple kit. A 2.50" kit is also available with our new Redi-Lock coupler.

PinPoint Splice Kit

The Clear-Lock Couplers and PinPoint Splices in one simple package. All the advantages of the Clear-Lock couplers with water-tight connectors for the PinPoint locatable duct in one simple kit. A 2.50" kit is also available with our new Redi-Lock coupler.
Side-Band Couplers are fully divisible compression couplers that can be used as a transition between dissimilar conduits such as HDPE to PVC, threaded & non-threaded metal conduit, or fiberglass (FRP) conduit. The dual-locking sidebands provide a high pull-out strength and maximum holding power to connect or repair conduit. Zinc-plated carbon steel bolts are included for tightening the Side-Band Coupler.

Side-Band Coupler

Side-Band Couplers are fully divisible compression couplers that can be used as a transition between dissimilar conduits such as HDPE to PVC, threaded & non-threaded metal conduit, or fiberglass (FRP) conduit. The dual-locking sidebands provide a high pull-out strength and maximum holding power to connect or repair conduit. Zinc-plated carbon steel bolts are included for tightening the Side-Band Coupler.
A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.

E-LOC

A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.
A simple coupler to install and ideal where higher pull-out strengths are needed. The molded rubber gripping insert creates a water-tight and air-tight seal, while the additional screws aid to increase the pull-out strength.

E-LOC Plus

A simple coupler to install and ideal where higher pull-out strengths are needed. The molded rubber gripping insert creates a water-tight and air-tight seal, while the additional screws aid to increase the pull-out strength.
The Double E-LOC versions are suitable for cable blowing applications and are UV resistant for aerial use.

Double E-LOC

The Double E-LOC versions are suitable for cable blowing applications and are UV resistant for aerial use.
The Mor Clamp coupling is quickly and easily installed by slipping onto or wrapping around a conduit joint. The thick neoprene gasket assures a positive butt joint seal. It accommodates a variety of conduit types including HDPE, cast iron, PVC, and fiberglass. The stainless steel design offers a lightweight and economical unit which is strong and durable. Zinc plated carbon steel bolts are included for tightening the Mor Clamp coupling.

Mor Clamp

The Mor Clamp coupling is quickly and easily installed by slipping onto or wrapping around a conduit joint. The thick neoprene gasket assures a positive butt joint seal. It accommodates a variety of conduit types including HDPE, cast iron, PVC, and fiberglass. The stainless steel design offers a lightweight and economical unit which is strong and durable. Zinc plated carbon steel bolts are included for tightening the Mor Clamp coupling.
Used to join and seal length of HDPE and PVC Duct. The internal double compression seal is created as the end caps are tightened. NOTE: PVC compression couplers are not recommended for high-pressure air or gas lines, or applications requiring high pull-out resistance.

Compression Coupler

Used to join and seal length of HDPE and PVC Duct. The internal double compression seal is created as the end caps are tightened. NOTE: PVC compression couplers are not recommended for high-pressure air or gas lines, or applications requiring high pull-out resistance.
Quick, field assembly couplers or adapters to join different material types

Smooth-Cor Flex Kit

Quick, field assembly couplers or adapters to join different material types
Used with Armor Guard Conduit, the Armor Guard Kit is comprised of a Split-Lock + Coupler, a ScotchLok shield connector, and bonding braid for bonding and grounding the armored layer in the duct. This coupler arrangement is suitable for cable blowing applications.

Armor Guard Kit

Used with Armor Guard Conduit, the Armor Guard Kit is comprised of a Split-Lock + Coupler, a ScotchLok shield connector, and bonding braid for bonding and grounding the armored layer in the duct. This coupler arrangement is suitable for cable blowing applications.
