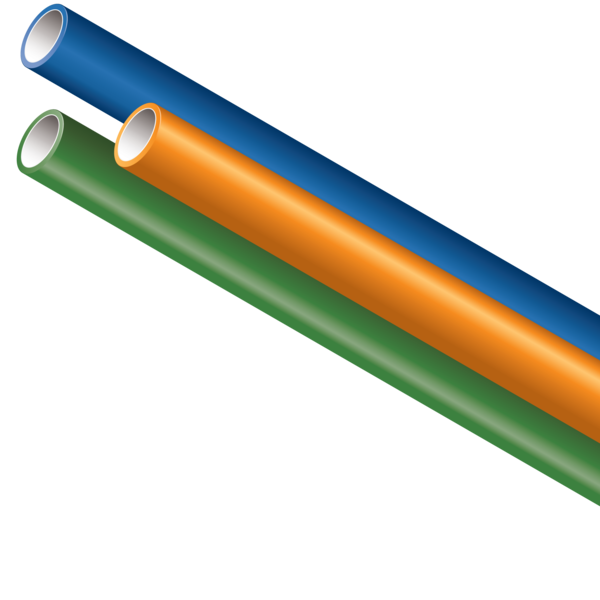

MicroDucts HDPE

MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.
MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.

We offer an extensive portfolio of US-made conduit products and accessories that conform with several domestic preference standards, including Buy America (BAA), Build America, Buy America (BABA), and DOT Buy American requirements. Any products including a locate wire or preinstalled cables, will need to be specifically evaluated. Fire Retardant Resins may also require additional evaluation to meet program guidelines. Please contact your Dura-Line representative for more information.

Configure

Features

  • HDPE MicroDucts available from 5mm OD – 27mm OD
  • Co-extruded with SILICORE®ULF permanent lining to reduce friction on cable installs
  • Utilize space in an occupied duct
  • Revitalize existing networks with overrides
  • Substantially reduce construction costs & deployment time
  • Install up to 432 count fiber MicroCables

Details

  • Footage/Meter Markings
  • Internal Ribs
  • Silicore® ULF
MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.

Quick Links

Tech Center
Dura-Line Academy

Specifications and Shipping Info

Choose the MicroDuct size (OD/ID) to view the specifications
MicroDuct Size mm
Download Technical Data Sheet
Product specifications
MicroDuct Size mm
12.7/8
Application (DI/DB)
DB
Nominal OD (mm/in)
12.7/0.5
MicroDuct Min ID (mm/in)
7.9/0.31
Weight (lb/ft)
0.05
Bend Radius Supported (in.)
5
Bend Radius Unsupported (in.)
10
SWPS (lbs)
268
Reel specifications
Reel Size (in.)
Standard Length (ft)
Reel Type
Reel Size (in.):
24 x 19
Standard Length (ft):
2000
Reel Type:
Wood
Reel Size (in.):
35 x 26
Standard Length (ft):
5000
Reel Type:
Wood
Reel Size (in.):
42 x 31
Standard Length (ft):
10000
Reel Type:
Plastic
Reel return program
Print Email Specs

Send

From

To

Downloads

Product Family Technical Data Sheet Download All
DL_MD_HDPE.8.24
MDU - Multiple Dwelling Unit Brochure

Colors

Blue
Blue
Orange
Orange
Green
Green
Brown
Brown
Gray
Gray
White
White
Red
Red
Black
Black
Yellow
Yellow
Terra Cotta
Terra Cotta

Options

Pre-Installed Fiber
Pre-Installed String

Installations

Applications

Related products

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.
Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

MicroDuct Cutters

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.
The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

MicroDuct Organizer

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.
Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

Gas Block Connector

Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.
The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

Distribution Box

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.
