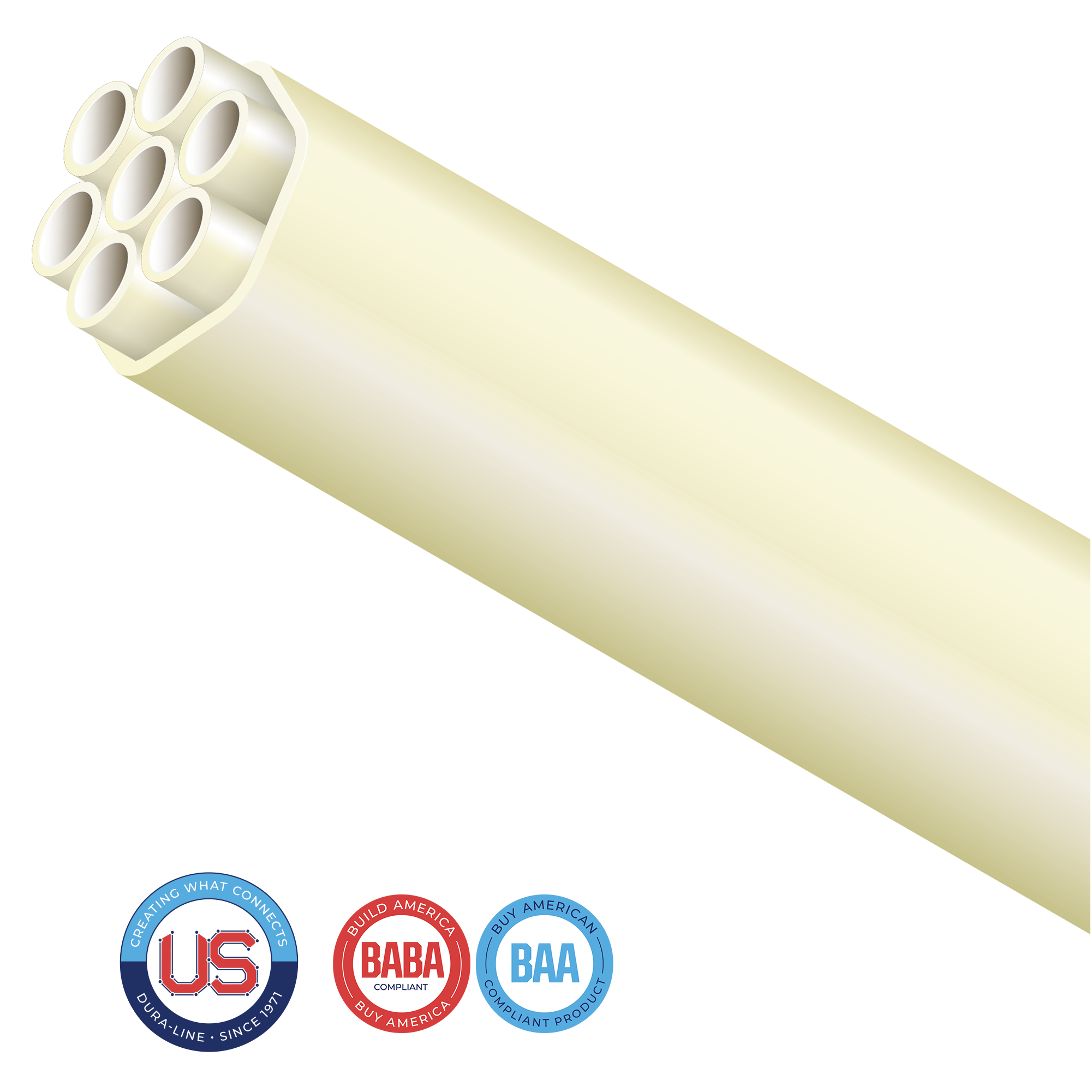

FuturePath Riser

FuturePath Riser rated products are used within buildings in either vertical or horizontal backbone applications or directly to workstations as drops. FuturePath Riser is fully approved by the American ETL (Electrical Testing Laboratories) for Riser applications per UL-2024 and UL-94-V2.
FuturePath Riser rated products are used within buildings in either vertical or horizontal backbone applications or directly to workstations as drops. FuturePath Riser is fully approved by the American ETL (Electrical Testing Laboratories) for Riser applications per UL-2024 and UL-94-V2.

We offer an extensive portfolio of US-made conduit products and accessories that conform with several domestic preference standards, including Buy America (BAA), Build America, Buy America (BABA), and DOT Buy American requirements. Any products including a locate wire or preinstalled cables, will need to be specifically evaluated. Fire Retardant Resins may also require additional evaluation to meet program guidelines. Please contact your Dura-Line representative for more information.

Configure

Features

  • MicroDucts available from 5mm to 12.7mm and factory bundled with an oversheath
  • Configurations: 24-way, 19-way, 12-way, 7-way, 4-way, 3-way or 2-way
  • Multiple pathways in place for future growth
  • Cost-Effective: multiple pathways for one installation cost
  • No special tools or equipment are required for installation
  • ETL Listed to UL/CSA Specifications

Details

  • Footage/Meter Markings
  • Internal Ribs
  • Silicore®
  • Rip Cord
FuturePath Riser rated products are used within buildings in either vertical or horizontal backbone applications or directly to workstations as drops. FuturePath Riser is fully approved by the American ETL (Electrical Testing Laboratories) for Riser applications per UL-2024 and UL-94-V2.

Quick Links

Tech Center
Dura-Line Academy

Specifications and Shipping Info

Choose the Configuration (# of pathways), then the MicroDuct size
Configuration
MicroDuct (OD/ID)

Select Configuration and MicroDuct size above

Send

From

To

Downloads

Product Family Technical Data Sheet
DL_FuturePath Riser_5.22

Colors

Dull Yellow
Dull Yellow

Installations
