FuturePath Hybrid

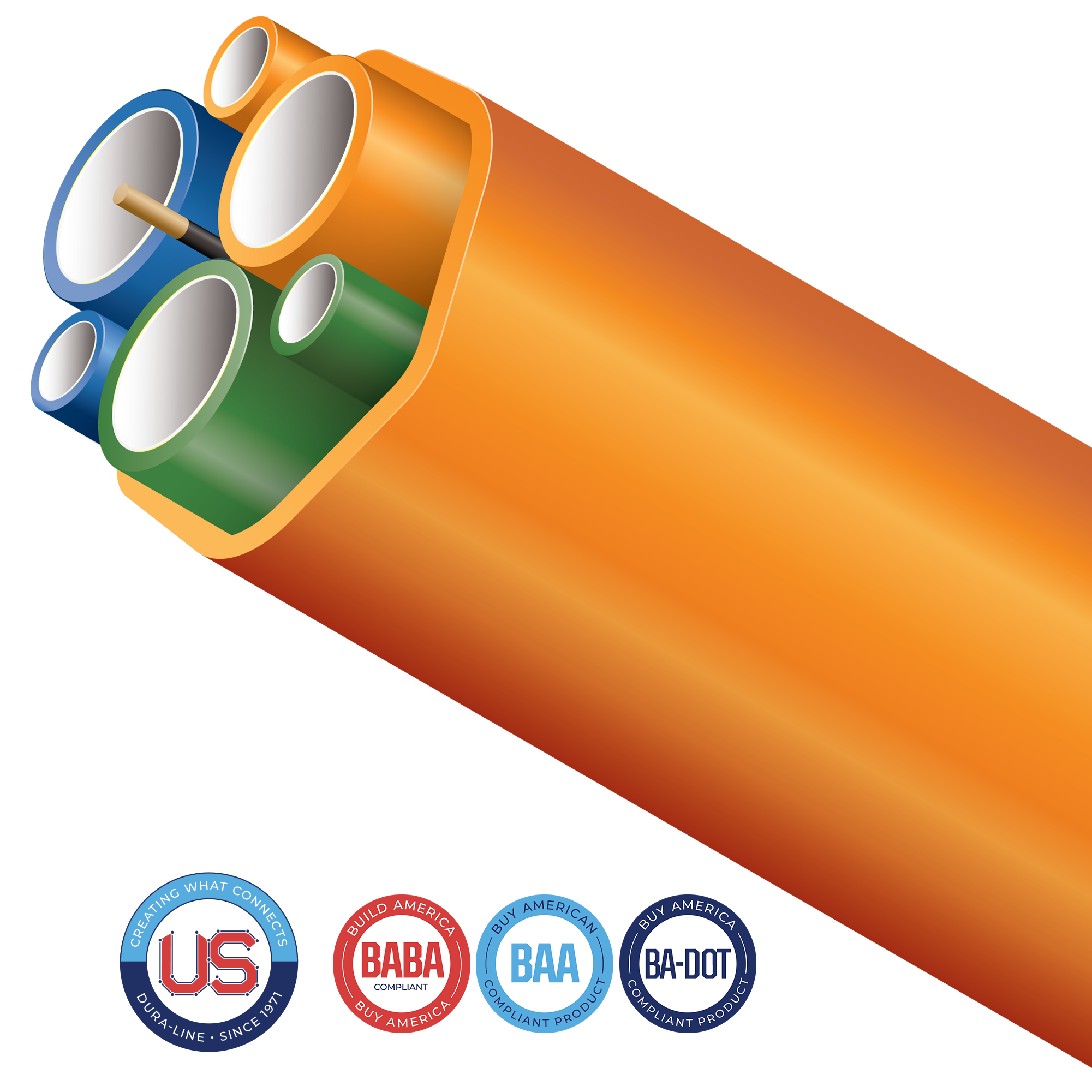

FuturePath configuration consisting of two or more different sizes of conduit and/or MicroDucts. A perfect choice for customers who need to run micro cables and larger standard fiber cables at the same time, or would like to plan for future possibilities.
FuturePath configuration consisting of two or more different sizes of conduit and/or MicroDucts. A perfect choice for customers who need to run micro cables and larger standard fiber cables at the same time, or would like to plan for future possibilities.

We offer an extensive portfolio of US-made conduit products and accessories that conform with several domestic preference standards, including Buy America (BAA), Build America, Buy America (BABA), and DOT Buy American requirements. Any products including a locate wire or preinstalled cables, will need to be specifically evaluated. Fire Retardant Resins may also require additional evaluation to meet program guidelines. Please contact your Dura-Line representative for more information.

Configure

Features

  • FuturePath configuration combining popular MicroDuct sizes with common Smoothwall duct sizes
  • Multiple configurations available
  • Cost-Effective: multiple pathways for one installation cost
  • FuturePath is designed for installation using the same tools and equipment used for traditional conduit; no special tools or equipment are required

Details

  • Footage/Meter Markings
  • Internal Ribs
  • Silicore® ULF
  • Rip Cord
  • Locate Wire
FuturePath configuration consisting of two or more different sizes of conduit and/or MicroDucts. A perfect choice for customers who need to run micro cables and larger standard fiber cables at the same time, or would like to plan for future possibilities.

Quick Links

Tech Center
Dura-Line Academy

Specifications and Shipping Info

Choose the Configuration (# of pathways), then the component sizes
Configuration
Component Sizes

Select Configuration and Component sizes above

Send

From

To

Downloads

Product Family Technical Data Sheet Download All
DL_FP Hybrid_3way_11.24
DL_FP Hybrid_6way_5.23
DL_FP Hybrid_8way_6.22
DL_FP Hybrid_9way_5.23
DL_FP Hybrid_10way_5.23
DL_FP Hybrid_12way_6.22
DL_FP Hybrid_15way_5.23

Colors

Blue
Blue
Orange
Orange
Green
Green
Brown
Brown
Gray
Gray
White
White
Red
Red
Black
Black
Terra Cotta
Terra Cotta

Options

Internal Ribs

Installations

Applications

Related products

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.
FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

Splice Kits

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.
Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

MicroDuct Cutters

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.
The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

MicroDuct Organizer

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.
Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

FuturePath Enclosure Connector

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm
Bull-Line 100% Polyester Pull Tape provides a competitive solution for applications that require a high tensile strength and low elongation. Bull-Line Pull Tape is lightweight and has good blowability. Bull-Line Pull Tape has low burn through resistance in comparison to other brands. An added benefit of all Bull-Line Pull Tapes are the durable print and sequential markings, in both feet or meters, for accurate locating during installation. Bull-Line Pull Tape is made in the USA.

Polyester Tape

Bull-Line 100% Polyester Pull Tape provides a competitive solution for applications that require a high tensile strength and low elongation. Bull-Line Pull Tape is lightweight and has good blowability. Bull-Line Pull Tape has low burn through resistance in comparison to other brands. An added benefit of all Bull-Line Pull Tapes are the durable print and sequential markings, in both feet or meters, for accurate locating during installation. Bull-Line Pull Tape is made in the USA.
The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

Distribution Box

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.
HydraLube® AT-500 is a high performance silicone lubricant formulated specifically for use with compressed air-assisted cable blowing, jetting and pushing systems. These systems inject a high volume of air into the conduit which will rapidly dry out conventional cable placement lubricants (including silicone-based) and cause surface stickiness. Futhermore, the initial temperature of the compressed air can be very high, which will accelerate drying of the lubricant. HydraLube® AT-500 deposits a special low friction silicone coating on the conduit wall surface that is resistant to the drying effects of the rapid air movement and high heat. This product is fully compatible with cable jackets and HDPE or PVC conduit systems.

AT-500

HydraLube® AT-500 is a high performance silicone lubricant formulated specifically for use with compressed air-assisted cable blowing, jetting and pushing systems. These systems inject a high volume of air into the conduit which will rapidly dry out conventional cable placement lubricants (including silicone-based) and cause surface stickiness. Futhermore, the initial temperature of the compressed air can be very high, which will accelerate drying of the lubricant. HydraLube® AT-500 deposits a special low friction silicone coating on the conduit wall surface that is resistant to the drying effects of the rapid air movement and high heat. This product is fully compatible with cable jackets and HDPE or PVC conduit systems.
