Trench Installations

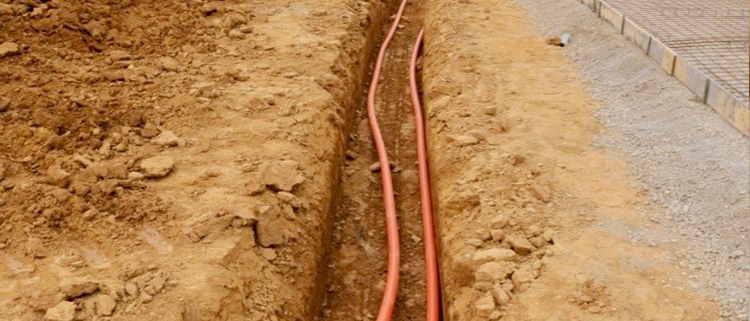

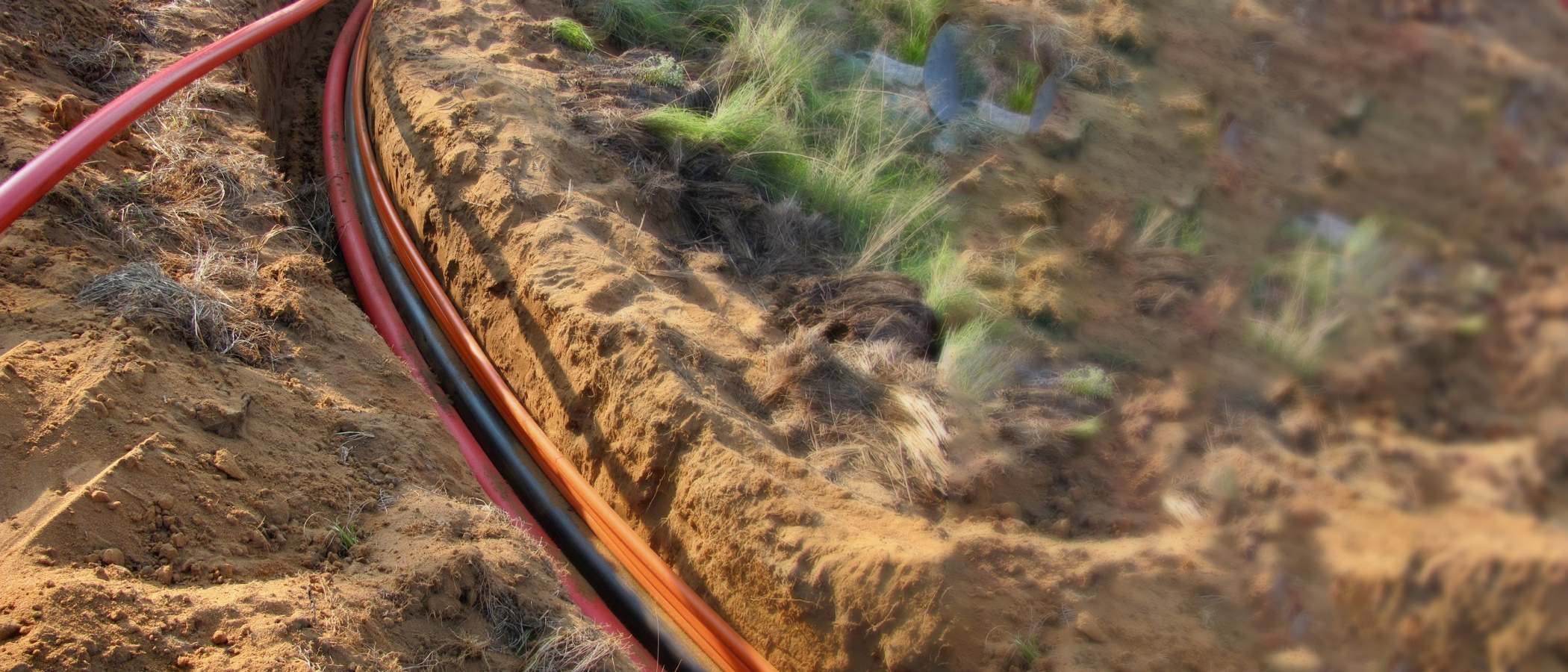

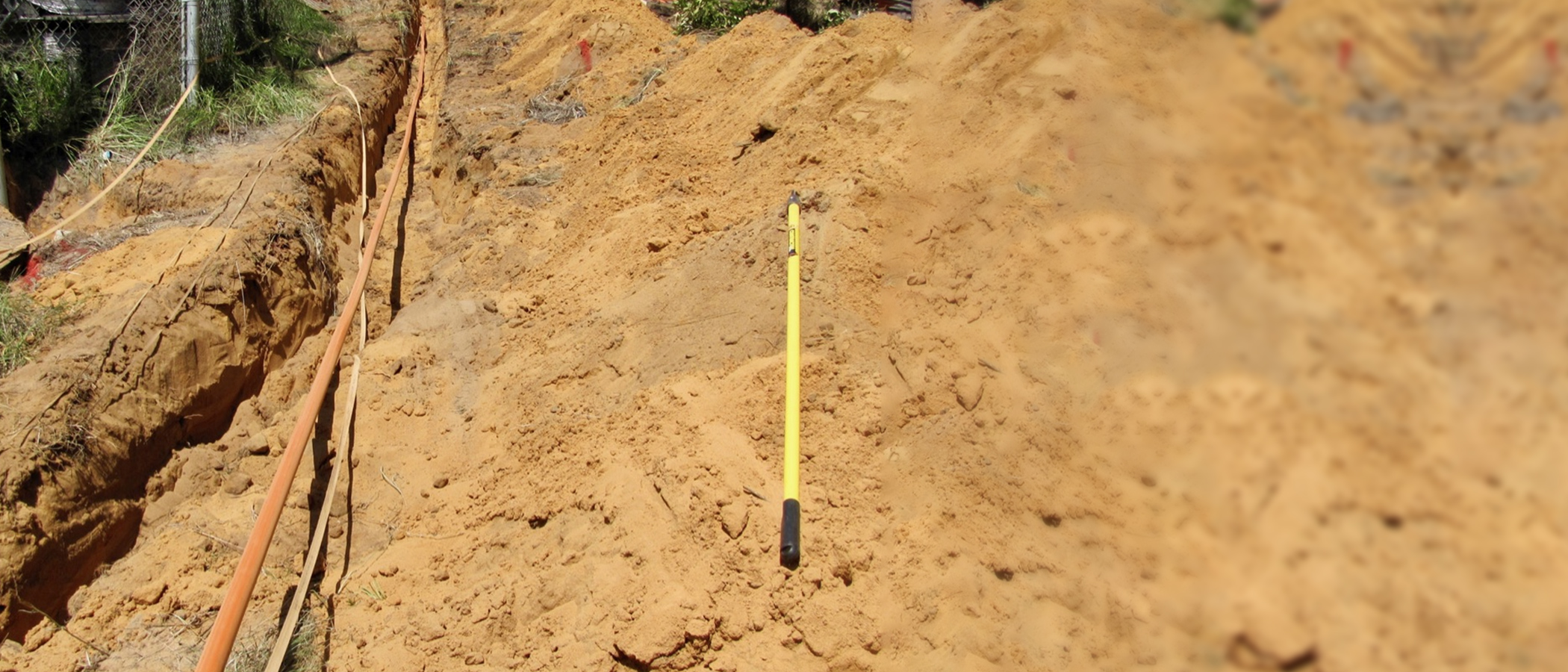

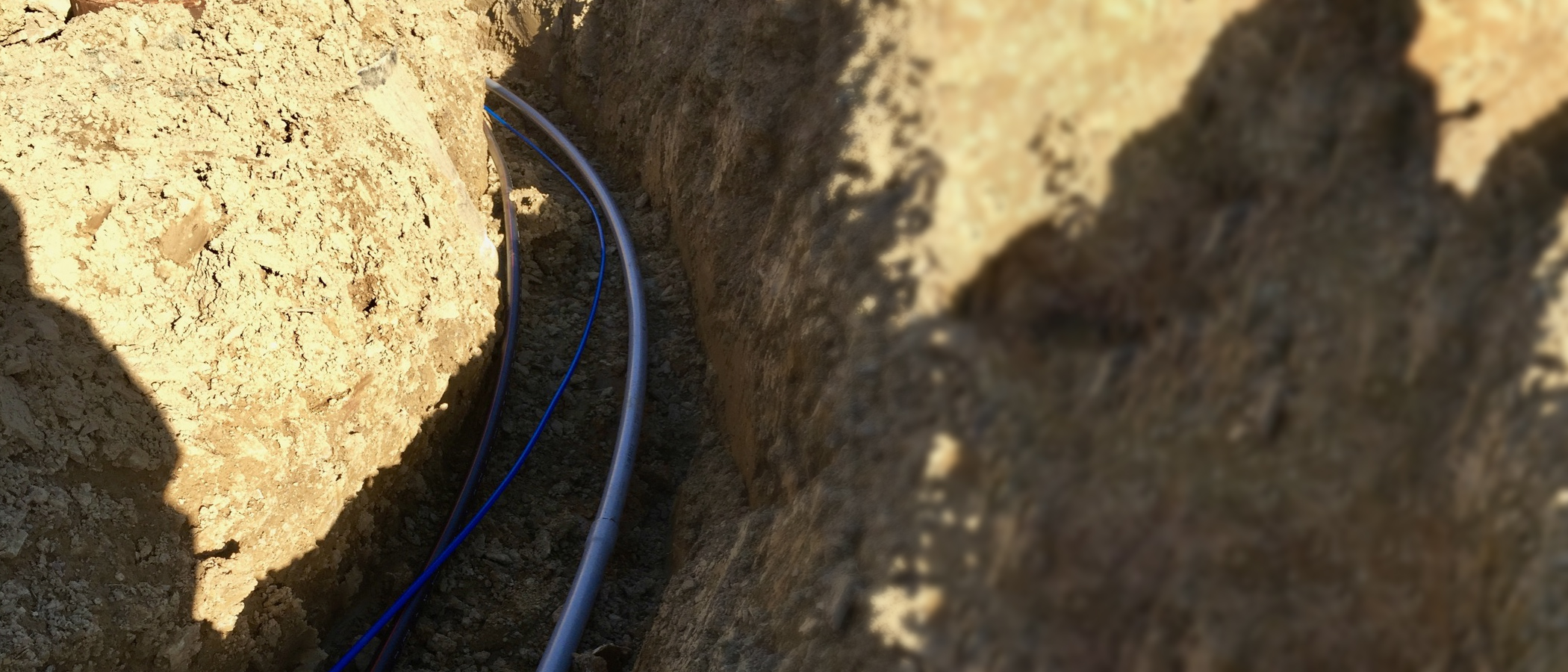

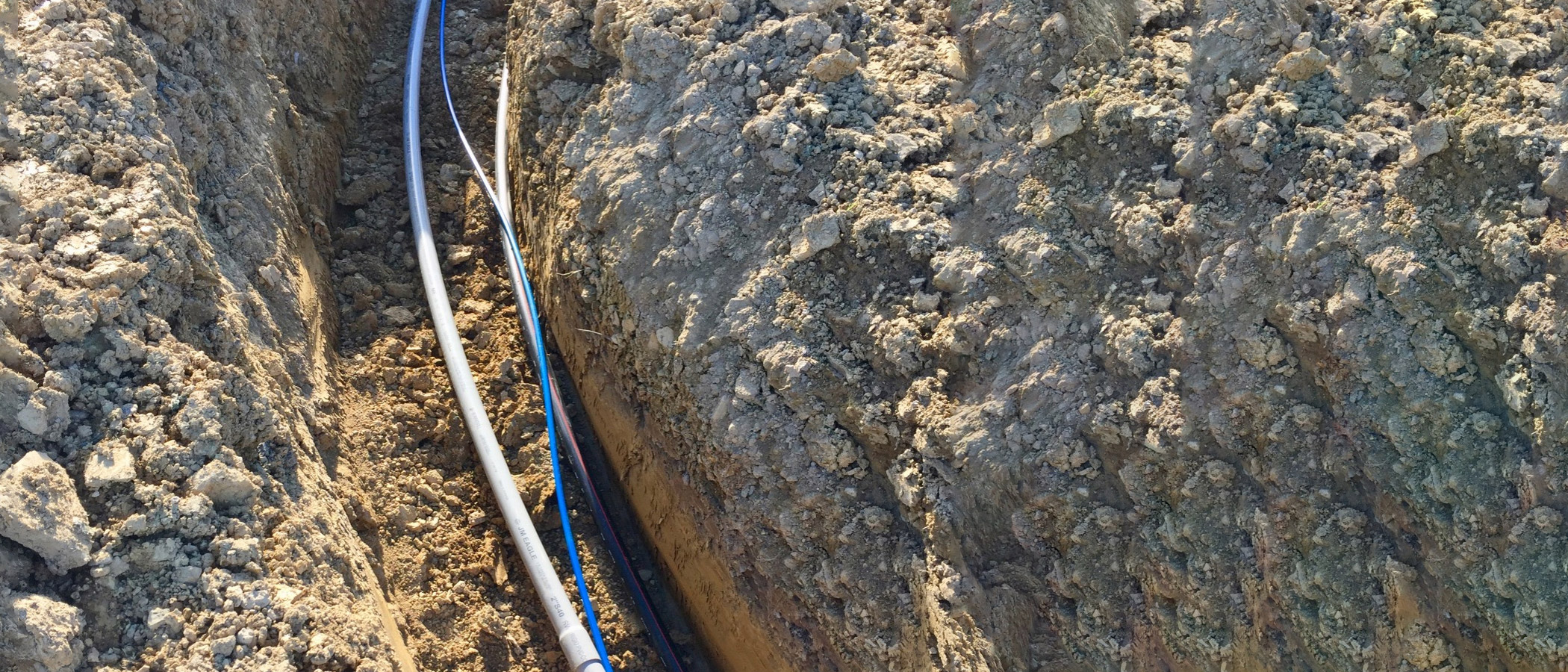

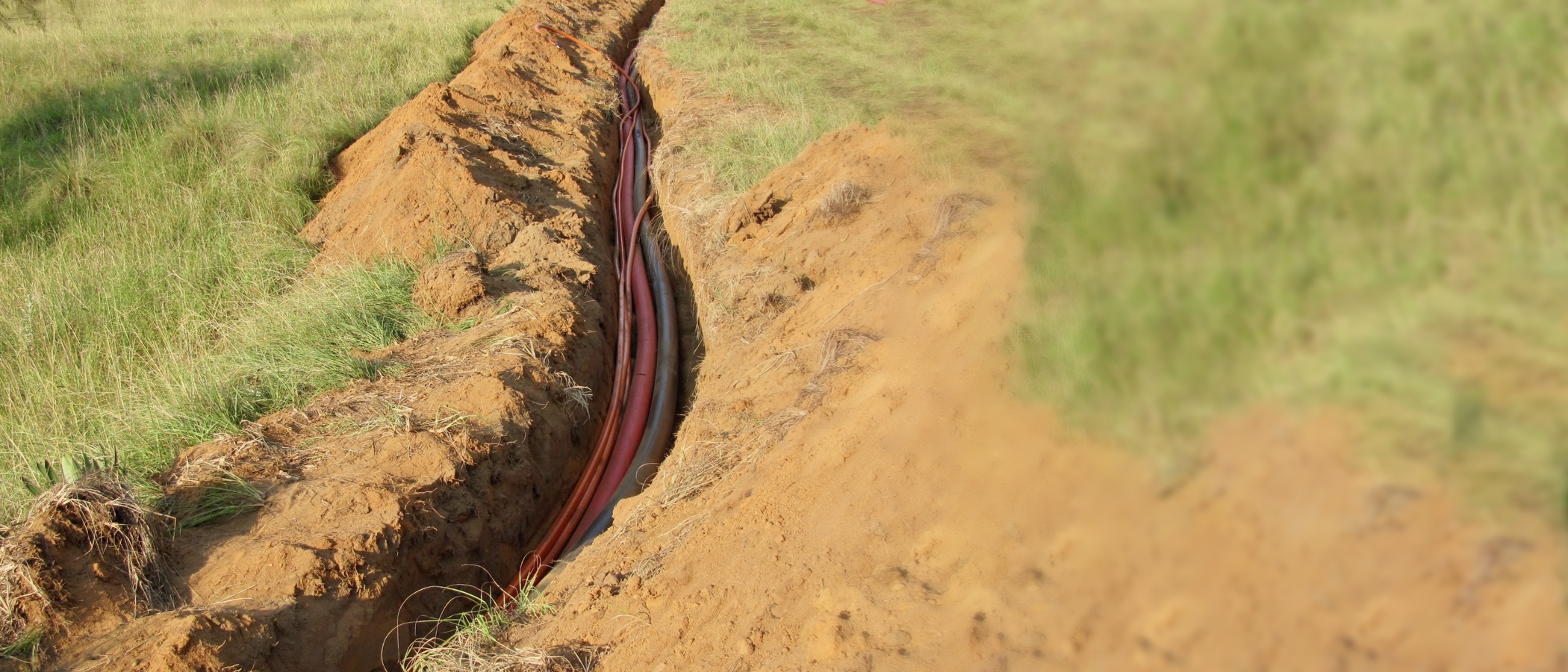

Trenching of all types and sizes of ducts and conduits is a common practice but HDPE does require the proper preparation of the trench for optimum performance when pulling or jetting cables through the trenched duct.

Our Digital Tools are designed to aid you in choosing MicroTechnology products for specific installations.

Go To Digital Tools

Applications
Long Haul
Cellular / DAS
Renewable Energy
Fiber Optic Sensing
USING A TRENCHER

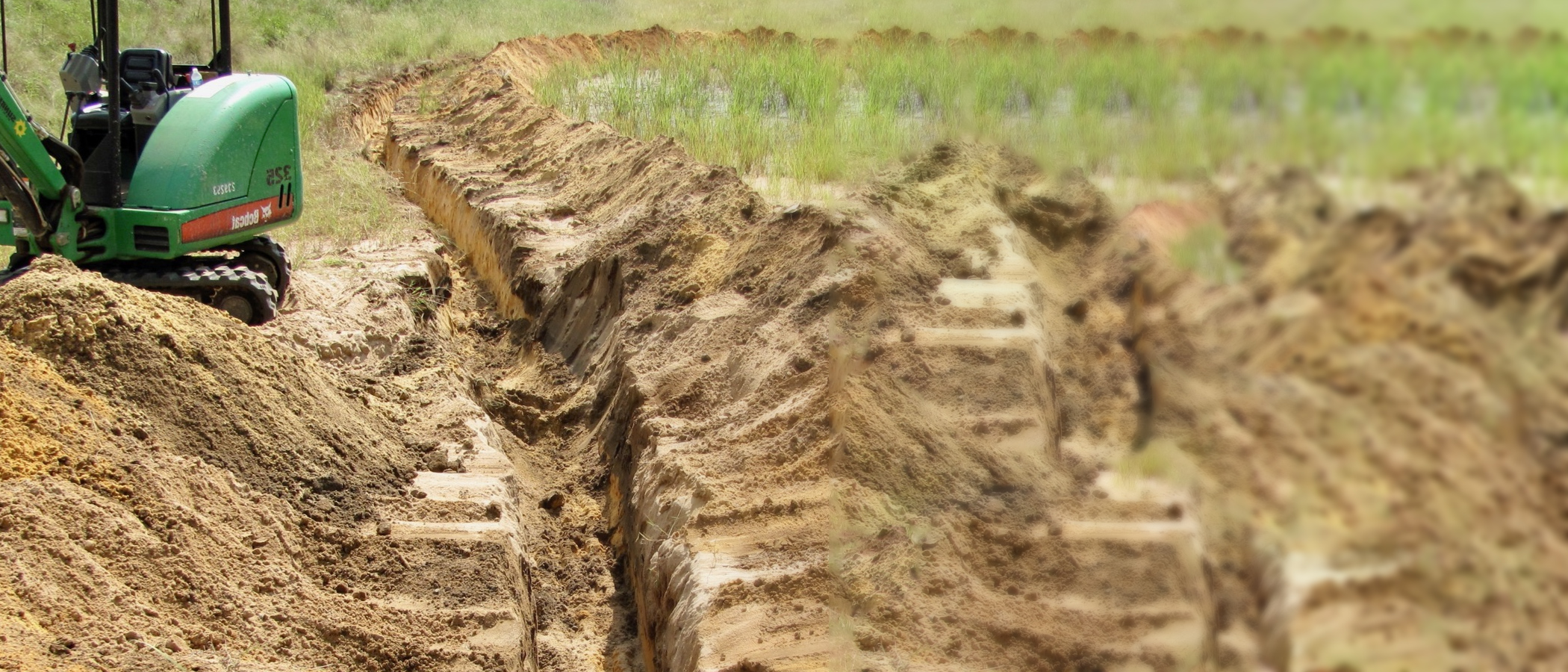

Trenchers of all types – from portable walk-behind to large chain tractor and wheel/rockwheel types – are used to construct trenches for HDPE duct applications. The key when using the trencher is to keep the trench depth as even as possible and the width proportional to the ducts or bundles being placed in the trench.

BACKHOE/TRACKHOE/EXCAVATOR TRENCHING

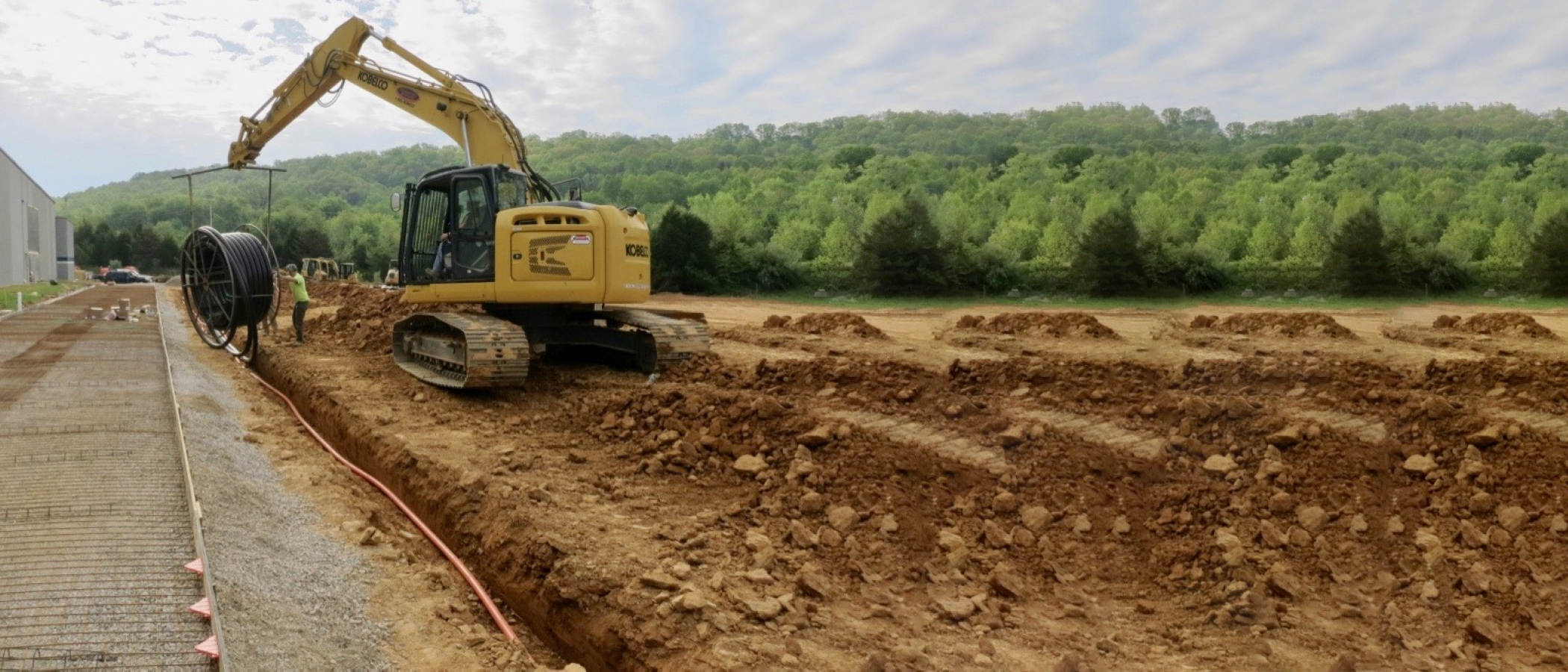

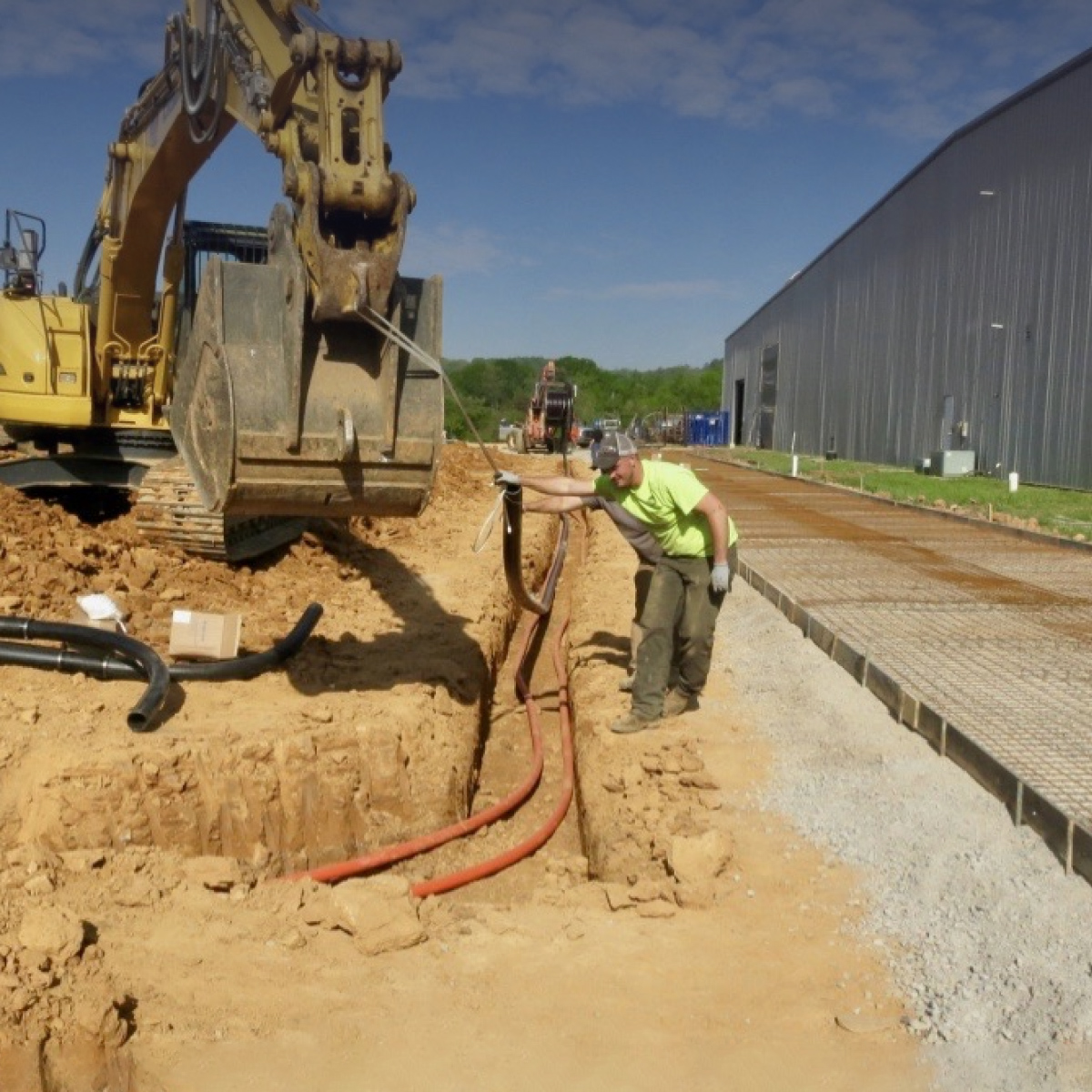

Trench construction using these devices to construct trenches – typically, for shorter excavations in populated or urban areas – requires more care regarding keeping the bottom level and free of large rocks or perturbances that could damage the HDPE duct over time. The duct or bundles need to be placed and preferably anchored into a bottom corner to minimize undulation that will affect cable pulling or jetting distance performance.



Recommended products

MicroDuct is bundled into an easy-to-handle unit known as FuturePath. FuturePath can be installed just like standard duct: open trench, aerial, directional drilled, plowed, or pulled into an existing conduit. When branching individual MicroDucts, there is no need for a special branching box. No special tools or equipment are required for installation.

FuturePath

MicroDuct is bundled into an easy-to-handle unit known as FuturePath. FuturePath can be installed just like standard duct: open trench, aerial, directional drilled, plowed, or pulled into an existing conduit. When branching individual MicroDucts, there is no need for a special branching box. No special tools or equipment are required for installation.
FuturePath configuration consisting of two or more different sizes of conduit and/or MicroDucts. A perfect choice for customers who need to run micro cables and larger standard fiber cables at the same time, or would like to plan for future possibilities.

FuturePath Hybrid

FuturePath configuration consisting of two or more different sizes of conduit and/or MicroDucts. A perfect choice for customers who need to run micro cables and larger standard fiber cables at the same time, or would like to plan for future possibilities.
FuturePath configuration consisting of 2, 3, or 4 conduits, available in a variety of sizes and wall types. A perfect choice for customers who would like to plan for future possibilities using larger standard fiber cables.

FuturePath Jumbo

FuturePath configuration consisting of 2, 3, or 4 conduits, available in a variety of sizes and wall types. A perfect choice for customers who would like to plan for future possibilities using larger standard fiber cables.
MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.

MicroDucts HDPE

MicroDucts are a great way of getting the most versatility out of your current empty duct system. Why install one fiber cable when you could install multiple MicroDucts? Each MicroDuct is a pathway for fiber now or in the future. Expand your network as your needs require.
Our most popular HDPE duct, Smoothwall is available with an optional SILICORE® ULF permanently lubricated lining. These ducts perform well in all environments, aerial, direct buried, and underground. Multiple wall thickness are available based on the application.

Smoothwall

Our most popular HDPE duct, Smoothwall is available with an optional SILICORE® ULF permanently lubricated lining. These ducts perform well in all environments, aerial, direct buried, and underground. Multiple wall thickness are available based on the application.
Our popular HDPE duct with a smooth outer wall and internal longitudinal ribs for a reduced coefficient of friction. These ducts perform well in all environments, aerial, direct buried, and underground.

Smooth Out/Ribbed In

Our popular HDPE duct with a smooth outer wall and internal longitudinal ribs for a reduced coefficient of friction. These ducts perform well in all environments, aerial, direct buried, and underground.
HDPE duct with inner and outer ribs. The internal longitudinal ribs for a reduced coefficient of friction, while the external ribs help prevent spiraling and reduce friction when pulling innerduct into larger conduits. Available with optional Silicore ULF permanently lubricated lining.

Ribbed In/Out

HDPE duct with inner and outer ribs. The internal longitudinal ribs for a reduced coefficient of friction, while the external ribs help prevent spiraling and reduce friction when pulling innerduct into larger conduits. Available with optional Silicore ULF permanently lubricated lining.
CoExtruded conduit is an ideal choice to provide visual utility or end use of conduit identification.

CoExtruded

CoExtruded conduit is an ideal choice to provide visual utility or end use of conduit identification.
Our HDPE conduit made in accordance with requirements of NEMA TC-7 and is ideal for the installation and protection of electrical cables underground.

NEMA TC7

Our HDPE conduit made in accordance with requirements of NEMA TC-7 and is ideal for the installation and protection of electrical cables underground.
Meets or exceeds the HDPE resin requirements per ASTM D-3350 UV Black (minimum carbon black loading of 2%), Sequential footage markings, permanent ink jet or indent print, tested and listed by Intertek Laboratories (ETL) to assure compliance with UL 651A, certified by Dura-Line to comply with all UL 651A property and testing requirements.

UL 651A

Meets or exceeds the HDPE resin requirements per ASTM D-3350 UV Black (minimum carbon black loading of 2%), Sequential footage markings, permanent ink jet or indent print, tested and listed by Intertek Laboratories (ETL) to assure compliance with UL 651A, certified by Dura-Line to comply with all UL 651A property and testing requirements.
PinPoint® is a proven, reliable method for locating buried duct. The PinPoint wire is encased in HDPE providing a corrosion resistant conductor. Ideal for plow, open trench, or directional bores. It is extremely functional at a wide range of frequencies, compatible with industry standard locating equipment. No special tools are required to couple the duct and the PinPoint wire — current coupling methods can be utilized.

PinPoint

PinPoint® is a proven, reliable method for locating buried duct. The PinPoint wire is encased in HDPE providing a corrosion resistant conductor. Ideal for plow, open trench, or directional bores. It is extremely functional at a wide range of frequencies, compatible with industry standard locating equipment. No special tools are required to couple the duct and the PinPoint wire — current coupling methods can be utilized.

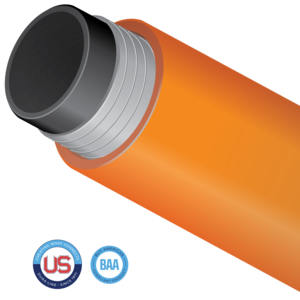

Armor Guard is an armored duct designed to provide the highest protection in direct burial or aerial applications. The corrugated steel armor is coated on both sides with a corrosion-resistant copolymer. The coated armor is integrally bonded with the HDPE jacket for superior cable protection in rugged environments.
