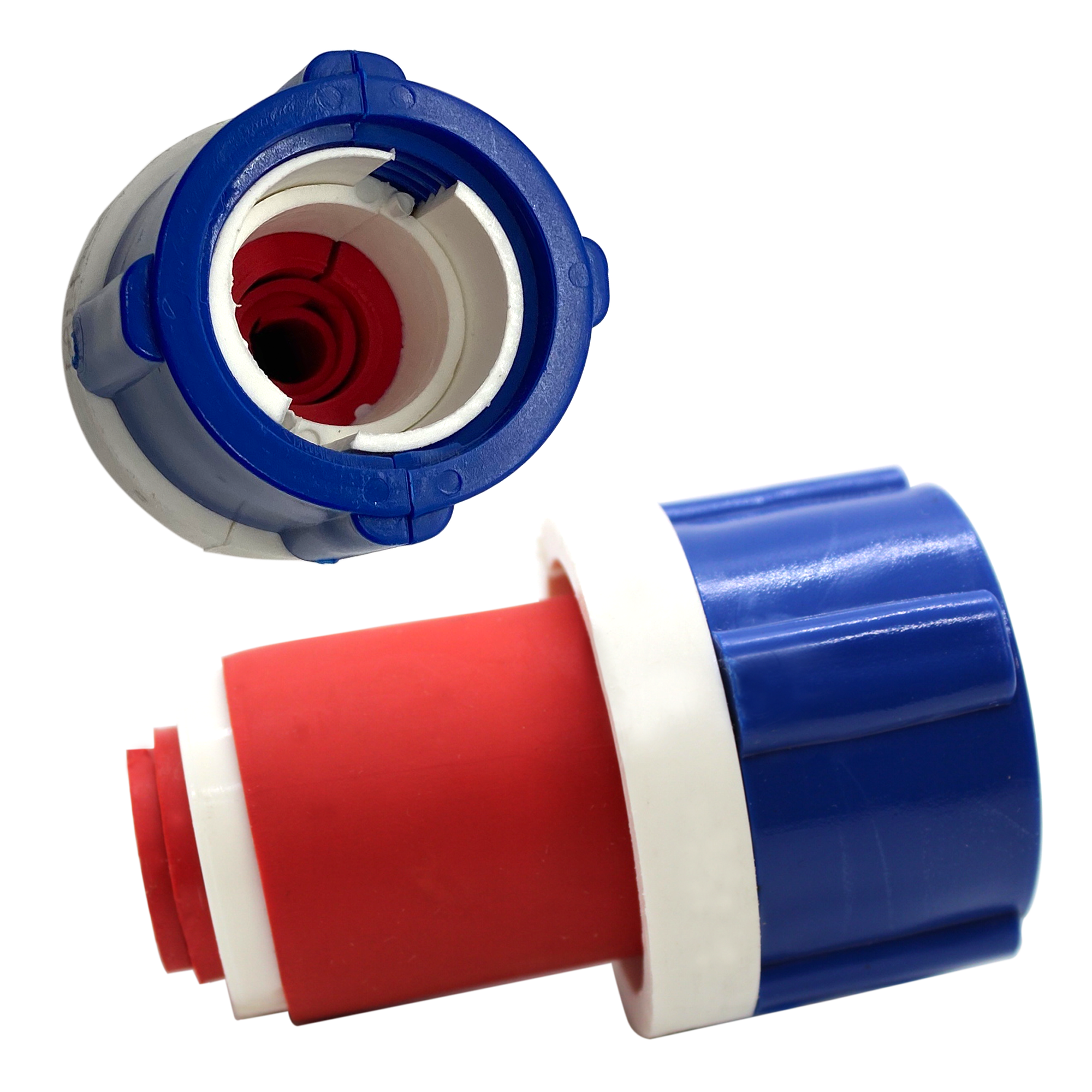

Simplex Plugs

Simplex Plugs effectively seal conduit containing one cable by sealing the space between the duct and cable.
Simplex Plugs effectively seal conduit containing one cable by sealing the space between the duct and cable.

Features

  • Re-usable and removable
  • Able to install around existing cables with no special tools needed
  • Air- and water-resistant
  • Corrosion proof
  • Prevents dirt and dust from entering conduit
  • 1.00” plug fits a Conduit ID of 1.05”-1.13”
  • 1.25” plug fits a Conduit ID of 1.28”-1.36”
  • 1.25” SDR 13.5 plug fits a Conduit ID of 1.37”-1.50”
  • 1.50” plug fits a Conduit ID of 1.46”-1.56”
  • 2.00” plug fits a Conduit ID of 1.92”-2.06”
  • Available in a variety of cable OD ranges
Ask your question
Simplex Plugs

Product Information

Part # Description Packaging
20005359 1 1/2" Simplex Plug cable OD 0.08" - 0.35" Each
20005360 1 1/2" Simplex Plug cable OD 0.35" - 0.57" Each
20005361 1 1/2" Simplex Plug cable OD 0.51" - 0.71" Each
20095969 1 1/4" SDR 13.5 Simplex Plug cable OD 0.12" - 0.43" Each
20095970 1 1/4" SDR 13.5 Simplex Plug cable OD 0.35" - 0.57" Each
20095971 1 1/4" SDR 13.5 Simplex Plug cable OD 0.51" - 0.71" Each
20005297 1 1/4" Simplex Plug cable OD 0.35" - 0.57" Each
20005298 1 1/4" Simplex Plug cable OD 0.51" - 0.71" Each
20005299 1 1/4" Simplex Plug cable OD 0.71" - 0.84" Each
20005356 1" Simplex Plug cable OD 0.27" - 0.35" Each
20005357 1" Simplex Plug cable OD 0.35" - 0.57" Each
20005358 1" Simplex Plug cable OD 0.51" - 0.71" Each
20093569 2" Simplex Plug cable OD 0.08" - 0.14" Each
20004994 2" Simplex Plug cable OD 0.15" - 0.24" Each
20004996 2" Simplex Plug cable OD 0.25" - 0.51" Each
20004995 2" Simplex Plug cable OD 0.52" - 0.75" Each
20005084 2" Simplex Plug cable OD 0.76" - 1.00" Each

Downloads

Specifications
DL_Simplex Plug_9.24

Other tools

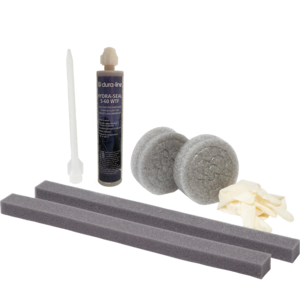

S-60 WTF “Wide Temp Foam” Conduit Foam Sealant is a two-part polyurethane material which rapidly expands to approximately 15 times in volume to form a strong, tough foam. S-60 WTF was specially developed for the construction, telecommunications, and electrical industries to prevent the intrusion of water and gasses through conduits in manholes, cable vaults, and handholes. It also makes an ideal product for sealing cracks in walls and filling large voids. S-60 WTF is provided in kit form with all the necessary materials for effective conduit sealing. Each kit contains one dual cartridge (Parts A and B), static mixing nozzle, damming material and disposable gloves packaged in a clear bag with product instructions. A dispensing gun is used to extrude the S-60 material. Partially “gunned” cartridges may be reused by refitting with a new static mixing nozzle.

Hydra-Seal S-60

S-60 WTF “Wide Temp Foam” Conduit Foam Sealant is a two-part polyurethane material which rapidly expands to approximately 15 times in volume to form a strong, tough foam. S-60 WTF was specially developed for the construction, telecommunications, and electrical industries to prevent the intrusion of water and gasses through conduits in manholes, cable vaults, and handholes. It also makes an ideal product for sealing cracks in walls and filling large voids. S-60 WTF is provided in kit form with all the necessary materials for effective conduit sealing. Each kit contains one dual cartridge (Parts A and B), static mixing nozzle, damming material and disposable gloves packaged in a clear bag with product instructions. A dispensing gun is used to extrude the S-60 material. Partially “gunned” cartridges may be reused by refitting with a new static mixing nozzle.
Also known as "Service Box Connectors", these threaded aluminum adapters are used to join HDPE conduit to a standard electrical service box.

Terminal Adapter

Also known as "Service Box Connectors", these threaded aluminum adapters are used to join HDPE conduit to a standard electrical service box.
Dura-Line offers a variety of cutters for your specific project needs. Choose from: Deburring, Ratchet, Rotary, Slitters, Straight Cutters, and Web Slitters.

Cutters

Dura-Line offers a variety of cutters for your specific project needs. Choose from: Deburring, Ratchet, Rotary, Slitters, Straight Cutters, and Web Slitters.
End caps are used as a dust or dirt cover, protecting entry by any foreign objects. They also protect the inner contents from disturbance. Dura-Line offers Flat Vinyl End Caps, Tapered Vinyl End Caps, or Cable End Caps to fit your installation needs.

End Caps

End caps are used as a dust or dirt cover, protecting entry by any foreign objects. They also protect the inner contents from disturbance. Dura-Line offers Flat Vinyl End Caps, Tapered Vinyl End Caps, or Cable End Caps to fit your installation needs.
Suitable for applications requiring moisture and UV protection, the PinPoint connectors can electrically connect 2-3 wire ends. They can accommodate 22-14 AWG.

PinPoint Connector

Suitable for applications requiring moisture and UV protection, the PinPoint connectors can electrically connect 2-3 wire ends. They can accommodate 22-14 AWG.

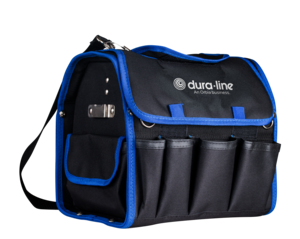

Dura-Line's most requested installation tools for both MicroTechnology and Conduit applications packaged into a durable, multi-use tool bag. Tool bag also available for individual purchase.

Tool Kit

Dura-Line's most requested installation tools for both MicroTechnology and Conduit applications packaged into a durable, multi-use tool bag. Tool bag also available for individual purchase.

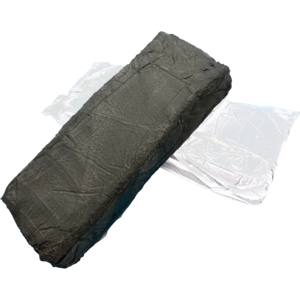

S-50 PUTTY SEALANT is an asbestos-free multi-purpose pliable thumb grade sealant specifically formulated for use in the construction, telecommunication, and electrical industries. S-50 is excellent for use around conduit, junction boxes, pedestals, meters, wire service entries, and for sealing around cables. S-50 is not a fire stop material. Compounded from synthetic polymers to produce superior tack and sealing properties, S-50 Putty Sealant provides resistance to penetration by water, air, and dust. S-50 has excellent adhesion to a variety of substrates including metal, concrete, wood stucco, fiberglass, and most plastics.

Hydra-Seal S-50

S-50 PUTTY SEALANT is an asbestos-free multi-purpose pliable thumb grade sealant specifically formulated for use in the construction, telecommunication, and electrical industries. S-50 is excellent for use around conduit, junction boxes, pedestals, meters, wire service entries, and for sealing around cables. S-50 is not a fire stop material. Compounded from synthetic polymers to produce superior tack and sealing properties, S-50 Putty Sealant provides resistance to penetration by water, air, and dust. S-50 has excellent adhesion to a variety of substrates including metal, concrete, wood stucco, fiberglass, and most plastics.

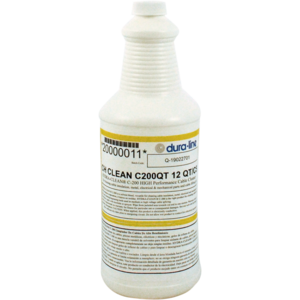

C-200 Multipurpose Cleaner is a versatile multipurpose cleaner and degreaser. It is effective in cleaning electrical cable insulation, fiber optic cable constructions, metal, electrical and mechanical parts. C-200 Multipurpose Cleaner evaporates completely, leaving no residue, and has no adverse effects on high and low density polyethylene, XLPE polyvinyl chloride, EPR or semi-conducting jackets.

HydraClean C-200

C-200 Multipurpose Cleaner is a versatile multipurpose cleaner and degreaser. It is effective in cleaning electrical cable insulation, fiber optic cable constructions, metal, electrical and mechanical parts. C-200 Multipurpose Cleaner evaporates completely, leaving no residue, and has no adverse effects on high and low density polyethylene, XLPE polyvinyl chloride, EPR or semi-conducting jackets.

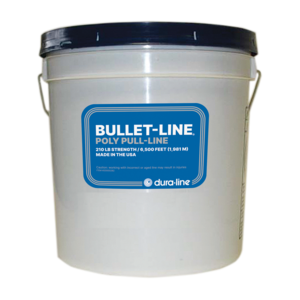

Bullet-Line® is a light poly line used in blowing and pulling applications. The line is rated at 210 lbs. breaking strength and is contained in a plastic dispenser pail. Each pail contains 6,500’ (1,981m) of line.

Bullet-Line

Bullet-Line® is a light poly line used in blowing and pulling applications. The line is rated at 210 lbs. breaking strength and is contained in a plastic dispenser pail. Each pail contains 6,500’ (1,981m) of line.

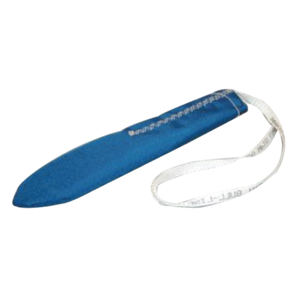

Rugged all-purpose inflatable carrier. Useful with pull tapes, fiber and power cable.

Nylon Inflatable Carrier

Rugged all-purpose inflatable carrier. Useful with pull tapes, fiber and power cable.

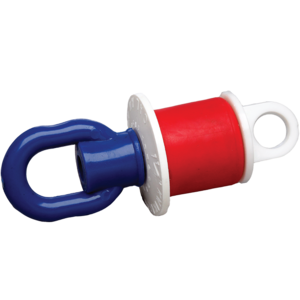

Expansion Plugs help prevent foreign material from entering conduit.

Expansion Plugs

Expansion Plugs help prevent foreign material from entering conduit.

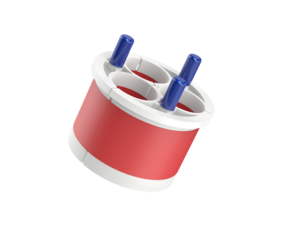

Effectively seal a subdivided duct while anchoring and organizing the subducts. The split design makes installation easy and the durable gaskets provide water- and air-resistance.

Triplex and Quadplex Entry Seals

Effectively seal a subdivided duct while anchoring and organizing the subducts. The split design makes installation easy and the durable gaskets provide water- and air-resistance.

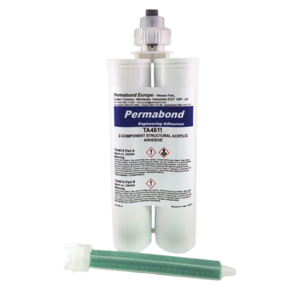

A 2-part, 1:1 toughened acrylic adhesive that bonds and seals conduit connections

Permabond

A 2-part, 1:1 toughened acrylic adhesive that bonds and seals conduit connections

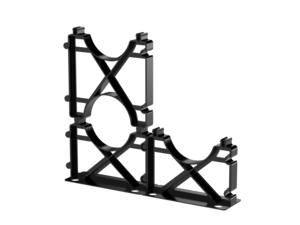

Available in intermediate and base configurations that snap into place, Duct Spacers are used to support duct arrays within trenches. Made from high-impact polymers, Duct Spacers can support heavy loads in direct bury installations while still being lightweight and easy to assemble by hand.
