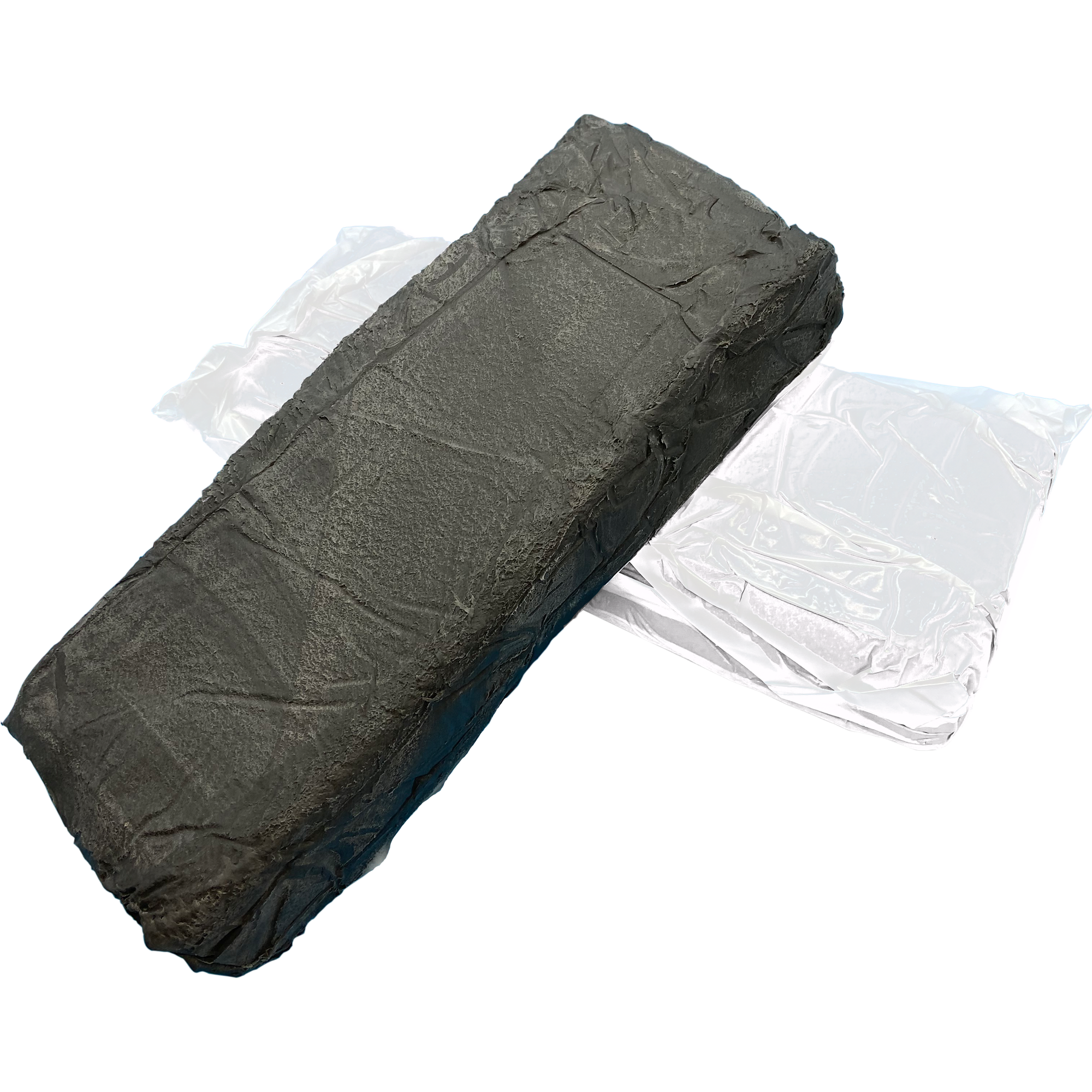

Hydra-Seal S-50

S-50 PUTTY SEALANT is an asbestos-free multi-purpose pliable thumb grade sealant specifically formulated for use in the construction, telecommunication, and electrical industries. S-50 is excellent for use around conduit, junction boxes, pedestals, meters, wire service entries, and for sealing around cables. S-50 is not a fire stop material. Compounded from synthetic polymers to produce superior tack and sealing properties, S-50 Putty Sealant provides resistance to penetration by water, air, and dust. S-50 has excellent adhesion to a variety of substrates including metal, concrete, wood stucco, fiberglass, and most plastics.
S-50 PUTTY SEALANT is an asbestos-free multi-purpose pliable thumb grade sealant specifically formulated for use in the construction, telecommunication, and electrical industries. S-50 is excellent for use around conduit, junction boxes, pedestals, meters, wire service entries, and for sealing around cables. S-50 is not a fire stop material. Compounded from synthetic polymers to produce superior tack and sealing properties, S-50 Putty Sealant provides resistance to penetration by water, air, and dust. S-50 has excellent adhesion to a variety of substrates including metal, concrete, wood stucco, fiberglass, and most plastics.

Features

  • Multi-purpose putty sealing compound and moisture barriers
  • Remains pliable: will not shrink, dry out or crack for a minimum of 10 years
  • Contains no asbestos fibers
  • Stable at both low and high temperatures
  • Superior tack promotes excellent sealing properties between dissimilar surfaces
  • UV resistant: unaffected by sunlight or outdoor exposures
  • Compatible with all cable jackets, including semi-conductive jackets
  • Non-toxic, non-staining, non-corrosive
  • Does not contain TDI and is CFC and HCFC free
  • Specially formulated to perform in temperatures ranging from 20° to 100°F
  • Can hold back up to 70 feet of water head pressure
Ask your question
Hydra-Seal S-50

Product Information

Part # Description Packaging
20000014 S-50 Putty Sealant 1 lb bars Case
20000015 S-50 Putty Sealant 5 lb bars Case

Downloads

Specifications
DL_HydraSeal-S-50-6.2020
