End Caps

End caps are used as a dust or dirt cover, protecting entry by any foreign objects. They also protect the inner contents from disturbance. Dura-Line offers Flat Vinyl End Caps, Tapered Vinyl End Caps, or Cable End Caps to fit your installation needs.
End caps are used as a dust or dirt cover, protecting entry by any foreign objects. They also protect the inner contents from disturbance. Dura-Line offers Flat Vinyl End Caps, Tapered Vinyl End Caps, or Cable End Caps to fit your installation needs.

Features

  • Flexible nature allows for easy installation
  • Excellent stay ability
  • Soft material cushions cable ends
  • Flat Vinyl End Caps are stocked in 1½” lengths. Both Tapered and Cable End Caps are stocked in 2½” in length plus the taper/nipple for the cable to extend
  • -20°F to 300°F
  • Tapered and Cable End Caps are specially engineered for use with fiber optic installations
  • Tapered end permits the cable to protrude from the innerduct to allow for easy testing and connection
Ask your question
End Caps

End Cap Information

Select End Cap Type

Cable End Cap
Cable End Cap

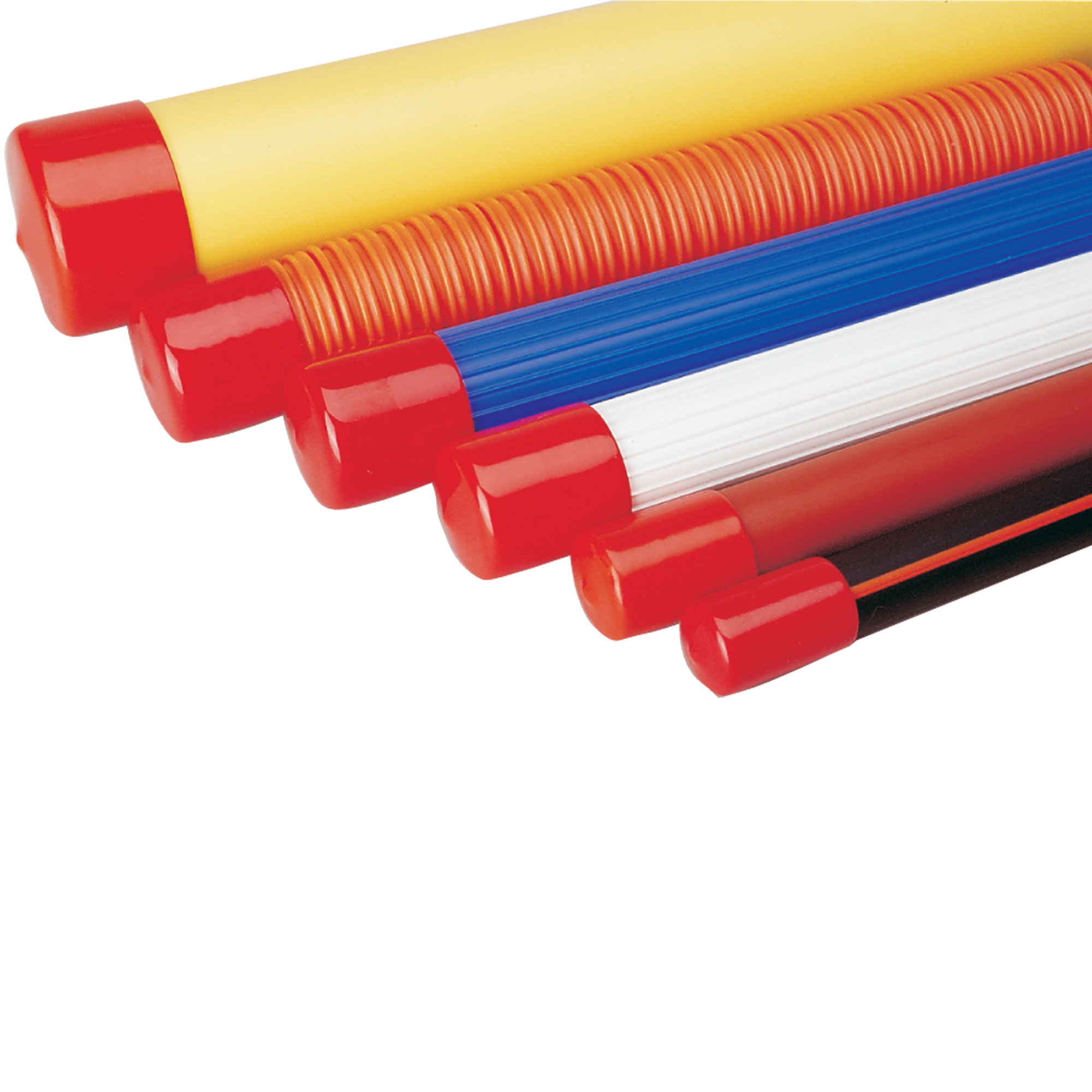

Flat Vinyl End Cap
Tapered Vinyl End Cap
Part # Description Packaging
20001736 0.75" SDR Cable End Cap - Single .500 or .625 Coax 1.050" OD Each
20002850 1.00" SDR Cable End Cap - Single .500 or .625 Coax 1.315" OD Each
20002920 1.25" SDR Cable End Cap - Single .750 or .875 Coax 1.660" OD Each
20001811 1.50" SDR Cable End Cap - Single .875 or 1.00 Coax 1.910" OD Each
20001814 2.00" SDR Cable End Cap - Double .500 or .625 Coax 2.375" OD Each
20002061 2.00" SDR Cable End Cap - Triple 4/0 - 4/0 - 2/0 2.375" OD Each
20001741 2.50" SDR Cable End Cap - Triple .750 - .500 Coax 2.875" OD Each
20001734 0.50" SDR Flat Vinyl End Cap 0.843" OD Each
20001806 0.75" SDR Flat Vinyl End Cap 1.050" OD Each
20001808 1.00" SDR Flat Vinyl End Cap 1.315" OD Each
20001807 1.00" SIDR Flat Vinyl End Cap 1.250" OD Each
20001809 1.25" SDR Flat Vinyl End Cap 1.620" OD Each
20001738 1.25" SDR Flat Vinyl End Cap 1.660" OD Each
20001810 1.25" SIDR Flat Vinyl End Cap 1.488" OD Each
20002533 1.50" SDR Flat Vinyl End Cap 1.875" OD Each
20001815 2.00" SDR Flat Vinyl End Cap 2.375" OD Each
20001816 2.50" SDR Flat Vinyl End Cap 2.875" OD Each
20001817 3.00" SDR Flat Vinyl End Cap 3.500" OD Each
20001818 4.00" SDR Flat Vinyl End Cap 4.500" OD Each
20095599 6.00" SDR Flat Vinyl End Cap 6.625" OD Each
20095932 8.00" SDR Flat Vinyl End Cap 8.625" OD Each
20001735 0.75" SDR Tapered Vinyl End Cap 1.040" OD Each
20001737 1.00" SDR Tapered Vinyl End Cap 1.300" OD Each
20001739 1.25" SDR Tapered Vinyl End Cap 1.640" OD Each
20002055 1.50" SDR Tapered Vinyl End Cap 1.900" OD Each
20001740 2.00" SDR Tapered Vinyl End Cap 2.375" OD Each

Downloads

Specifications
DL_Standard End Caps 9.2024
