Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.
Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Features

  • Easy assembly/disassembly, no tools required
  • Provide an air- and water-tight connection; keep debris out of MicroDuct pathway
  • Color coded by size
  • Tested to meet or exceed the stringent requirements of every local Standard for MicroDuct Connectors, for Air Blown Optical Fibers
  • Approved for use at 230PSI/16Bar
  • Low profile design
Ask your question
Micro End Caps

Technical Details

Part #
20002863
Description
5mm End Cap
Part #
20005273
Description
8mm End Cap
Part #
20003197
Description
10mm End Cap
Part #
20001482
Description
12.7mm End Cap
Part #
20001908
Description

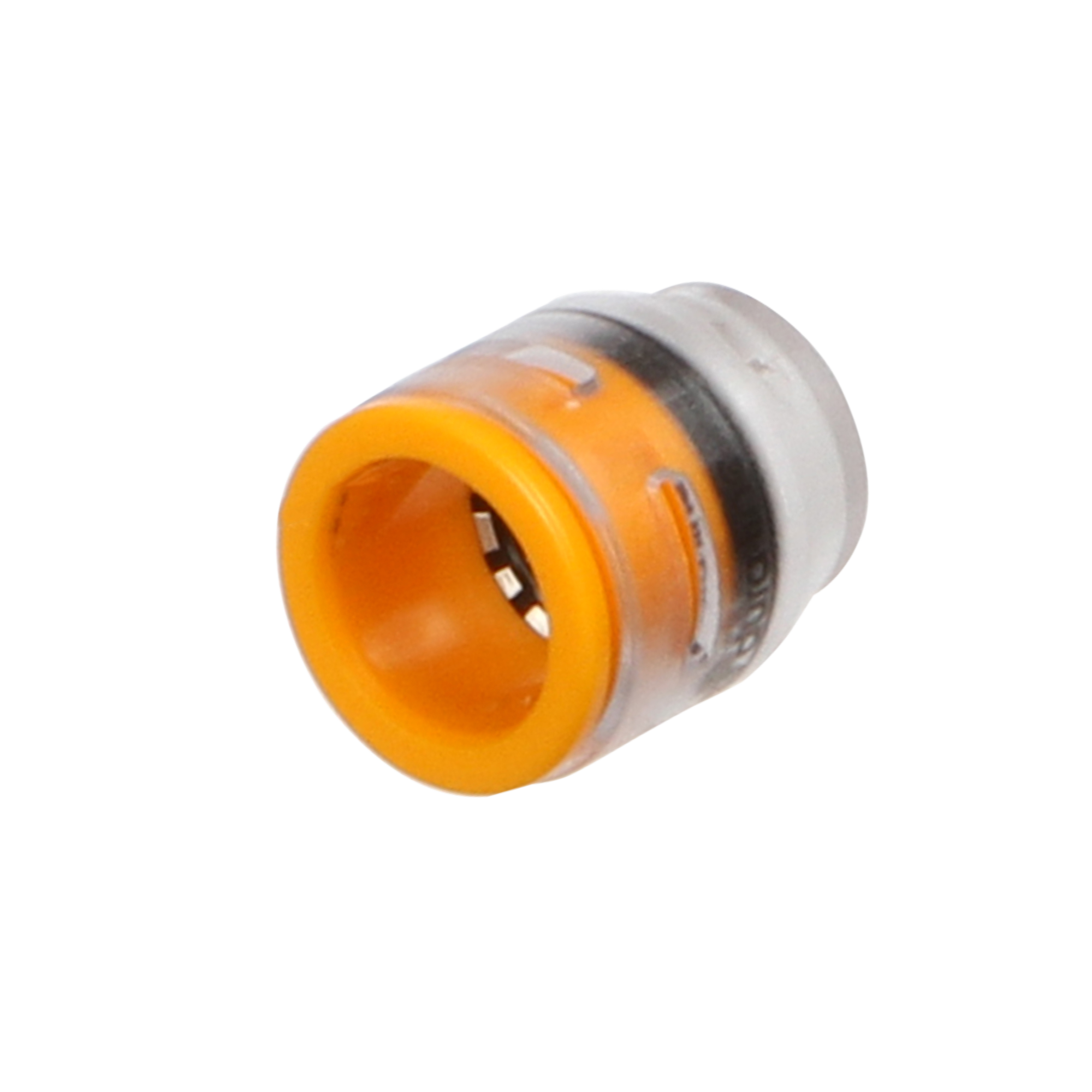

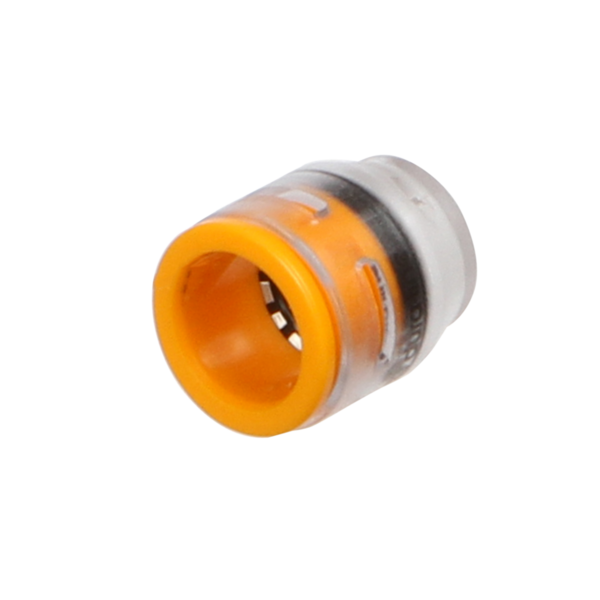

16mm End Cap
Part #
20003138
Description
22mm End Cap
Part #
20001486
Description
7mm End Cap
Part #
20001819
Description
8.5mm End Cap
Part #
20001484
Description
12mm End Cap
Part #
20003431
Description
14mm End Cap
Part #
20001485
Description
18mm End Cap
Part #
20005848
Description
27mm End Cap

Downloads

Specifications
DL_Micro End Caps 5.23
