MDS Enclosure

MDS Enclosure
MDS Enclosure

Features

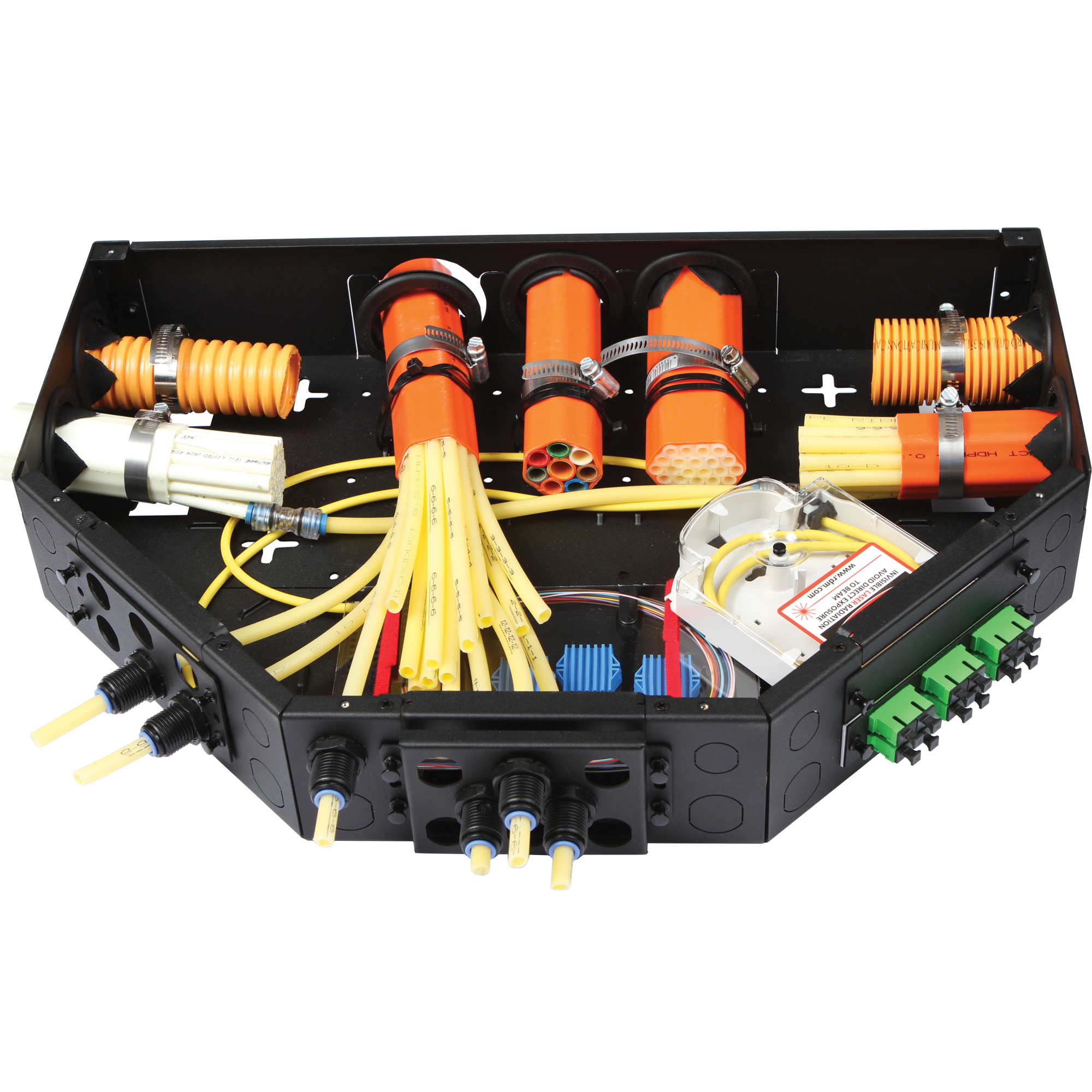

  • MDS (MicroDuct Distribution System) is designed for indoor enterprise, data center and DAS applications
  • The MDS can be used for managing all forms of duct up to 2 1/2" OD
  • The MDS can be used as a termination point, a pass through, and as a breakout box for routing large count cables into an OCEF
  • Scalable - the MDS can be deployed as a single unit or stacked and attached back to back for larger jobs
  • Unique, angular design allows for gentle sweeps to enhance fiber blowing
  • Can be mounted to the wall or overhead ladder rack (12", 18" or 24")
  • The MDS will accept splice trays
Ask your question
MDS Enclosure

Technical Details

Part #
20003845
Description
Wall Mount Multi-Cable Distribution Enclosure
Part #
20003847
Description
MDS Bulkhead Plate 2.50" Cable Opening and Strain Support 2-Slot
Part #
20003849
Description
MDS Bulkhead Plate L-Type 6 Position 8.5mm 1 Slot
Part #
20003851
Description
Bulkhead Plate, L-Type, Blank
Part #
20003858
Description
Hose Clamp: 1.25" - 2.25"
Part #
20003854
Description
MDS Replacement Screw
Part #
20003856
Description
MDS Wall Mount Screw, 1"
Part #
20003846
Description
MDS Stand-off Brackets for Ladder Rack Mount
Part #
20003848
Description
MDS Bulkhead Plate 8 Position 8.5mm 2-Slot
Part #
20003850
Description
MDS Bulkhead Plate L-Type 3 Position 12.7mm 2 Slot
Part #
20003852
Description
Hose Clamp: 0.50" - 1.25"
Part #
20003853
Description
Cable Tie
Part #
20003855
Description
MDS Ladder Bracket Screw
Part #
20003857
Description
MDS 2.5mm Web Grommet

Downloads

Specifications
DL_MDS Enclosure 6.2021

Other MicroAccessories

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.
A resealable valve has been installed on the end of Dura-Line's existing Micro End Caps to make OverRide installations safer and more efficient. The OverRide Micro End Cap is placed on the far end of the reel (opposite of the end being installed) and allows the installer to safely pressurize and depressurize the MicroDuct before and after an OverRide installation.

OverRide Micro End Cap

A resealable valve has been installed on the end of Dura-Line's existing Micro End Caps to make OverRide installations safer and more efficient. The OverRide Micro End Cap is placed on the far end of the reel (opposite of the end being installed) and allows the installer to safely pressurize and depressurize the MicroDuct before and after an OverRide installation.
FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

Splice Kits

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.
Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

MicroDuct Cutters

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.
The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

MicroDuct Organizer

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.
Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.

Gas Block Connector

Gas Block Connectors provide a simple and effective gas seal between the MicroDuct and the fiber cable to prevent gas, water, or moisture from entering the duct. The connector creates a seal around the installed cable.
Divisible Duct Seals provide an air- and water-tight seal between the cable OD and the inner wall of the MicroDuct. The hard outer cover is divisible so it can be easily installed around an existing cable.

Divisible Duct Seal Kits

Divisible Duct Seals provide an air- and water-tight seal between the cable OD and the inner wall of the MicroDuct. The hard outer cover is divisible so it can be easily installed around an existing cable.
Made from Zinc coated Carbon steel, MicroDuct Pulling Eyes facilitate the quick placement of MicroDucts. The hex head design allows for faster and safer installation and removal from the duct. The Pulling Harnesses can accommodate up to 4 Micro Pulling Eyes at a time and have staggered eyelets every 4 inches.

MicroDuct Pulling Eyes and Harnesses

Made from Zinc coated Carbon steel, MicroDuct Pulling Eyes facilitate the quick placement of MicroDucts. The hex head design allows for faster and safer installation and removal from the duct. The Pulling Harnesses can accommodate up to 4 Micro Pulling Eyes at a time and have staggered eyelets every 4 inches.
Excellent for use in repair scenarios or at jetting heads, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.

MicroDuct Split Coupler

Excellent for use in repair scenarios or at jetting heads, the MicroDuct Split Coupler provides a high quality, air- and water-tight seal. The divisible halves allow for installation around pre-installed cables.
Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

FuturePath Enclosure Connector

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm
eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The cable design combines a light-weight, low-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.

eABF Cables

eABF cables are designed by AFL to offer the most rugged and reliable enterprise-based blown fiber solution in the market today. The cable design combines a light-weight, low-drag jacketing system that allows the cable to be blown long distances. The cable series also features additional attributes that set this product above and beyond traditional blown fiber cables. These enhanced features include mechanical strengthening that permits the cable to comply with industry-standard premise interconnect specifications. In addition, the eABF cable series feature flame-resistance characteristics which result in stand-alone riser and plenum rated options suitable for routing outside of the micro-duct system. Because of these mechanical, environmental and optical qualifications, eABF cables can also be installed in third-party, flame-rated duct and pathway systems.
FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.

FuturePath Entry Seal

FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.
The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

Distribution Box

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.
Low-profile and made from Dual Polymer and Kevlar construction, the mesh Pulling Grip is an extremely strong, yet convenient means of pulling various sizes of MicroDucts or cables.

Mesh Pulling Grips for MicroDucts and Cables

Low-profile and made from Dual Polymer and Kevlar construction, the mesh Pulling Grip is an extremely strong, yet convenient means of pulling various sizes of MicroDucts or cables.
