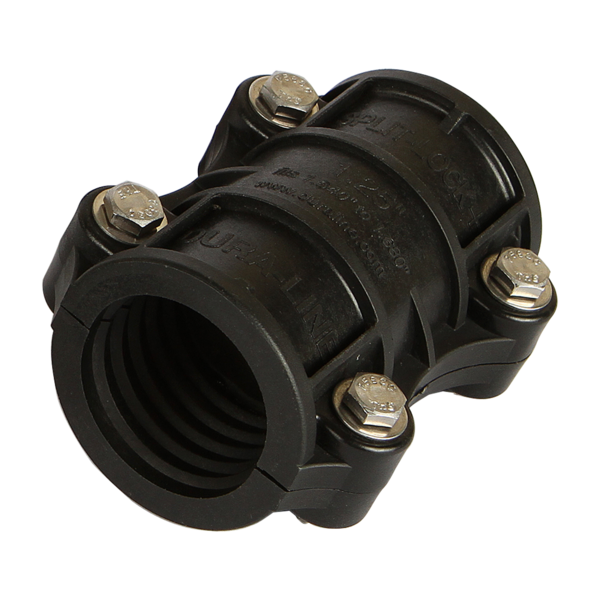

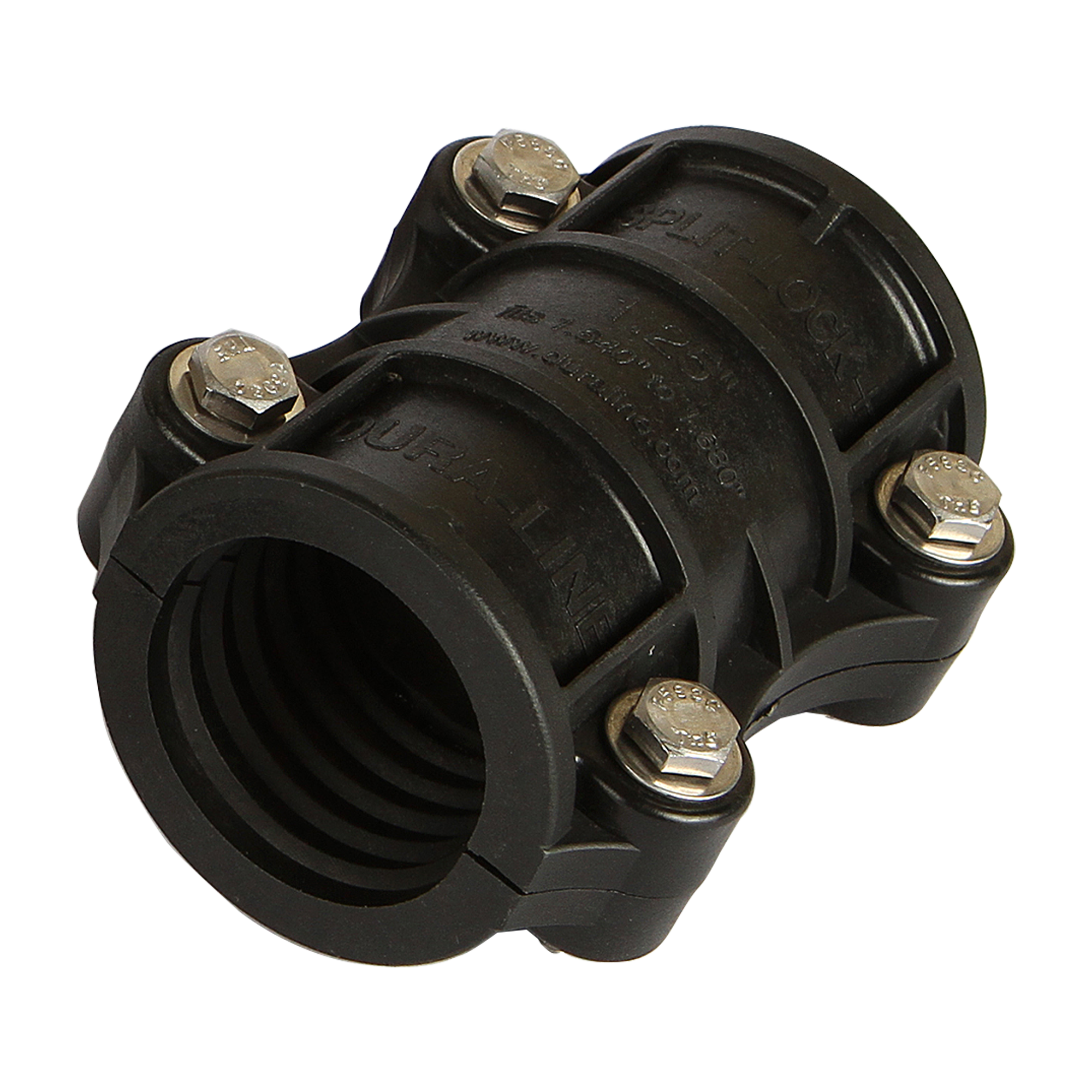

Split-Lock +

The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.

The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.

Features

No special tools required
Reusable – can install with cable inside
Heat and UV stabilized
Fungus and chemical resistant
Air-tight and water-tight
No ID reduction
Not recommended for plow chute
Meets UL 514B pull-out requirements
ETL listed to UL STD 514B and CSA STD C22.2 18.3
Made in the USA

Ask your question

Split-Lock +

On this page

Technical Specifications

Other accessories

Technical Specifications

Columns

Part #	Description	Nominal OD (in.)	ETL Listed	Packaging	Amount of Items/Case
20003907	1.00" Split-Lock +	1.315	✔	Case	10
20003908	1.25" Split-Lock +	1.66	✔	Case	10
20003909	1.50" Split-Lock +	1.9	✔	Case	10
20003910	2.00" Split-Lock +	2.375	✔	Case	10

Downloads

Specifications

DL_Split Lock Plus 1.24
