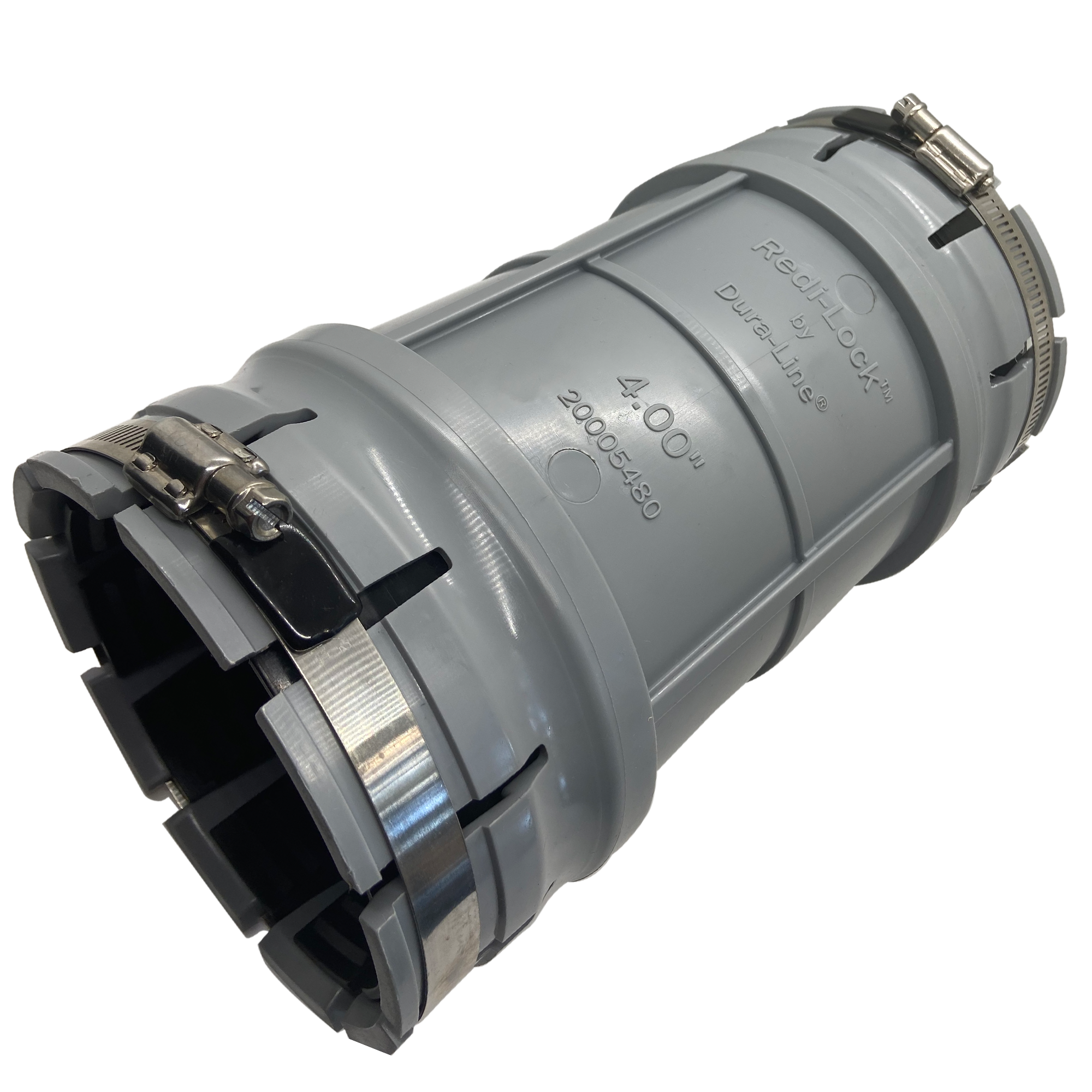

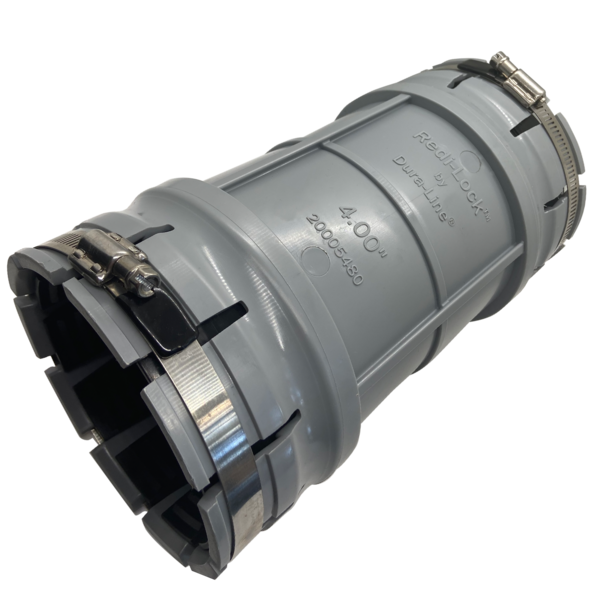

Redi-Lock

The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.
The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.

Features

  • Stainless steel band clamps (hand tightened using a 5/16" nut driver) with self-locking ring
  • O-ring forms an air- and water-tight seal
  • UV stabilized
  • High strength molded plastic body ideal for buried duct applications
  • If coupling HDPE to PVC, use Shur-lock II
Ask your question
Redi-Lock

Technical Specifications

Part # Description Nominal OD (in.) Pull Out Strength (lb) Max Pressure (psi) Packaging Amount of Items/Case Shipping Weight/Case (lb) Coupler Box Dimensions
20005477 2" Redi-Lock 2.375 700 70 Case 10 7.3 17.3Lx5.9Wx7.1H
20005478 2 1/2" Redi-Lock 2.875 750 55 Case 6 6.1 8.3Lx12.2Wx8.3H
20005479 3" Redi-Lock 3.5 950 40 Case 6 7.3 9.5Lx13.8Wx8.7H
20005480 4" Redi-Lock 4.5 950 40 Case 4 8.3 22.4Lx6.3Wx10.6H
20005481 5" Redi-Lock 5.563 1000 40 Case 2 6.7 13.8Lx6.7Wx11.8H
20005482 6" Redi-Lock 6.625 1100 15 Case 2 8.7 16.1Lx12.2Wx8.3H

Downloads

Specifications Download All
Redi-Lock 1.2024
Redi-Lock Illustrated Instructions
