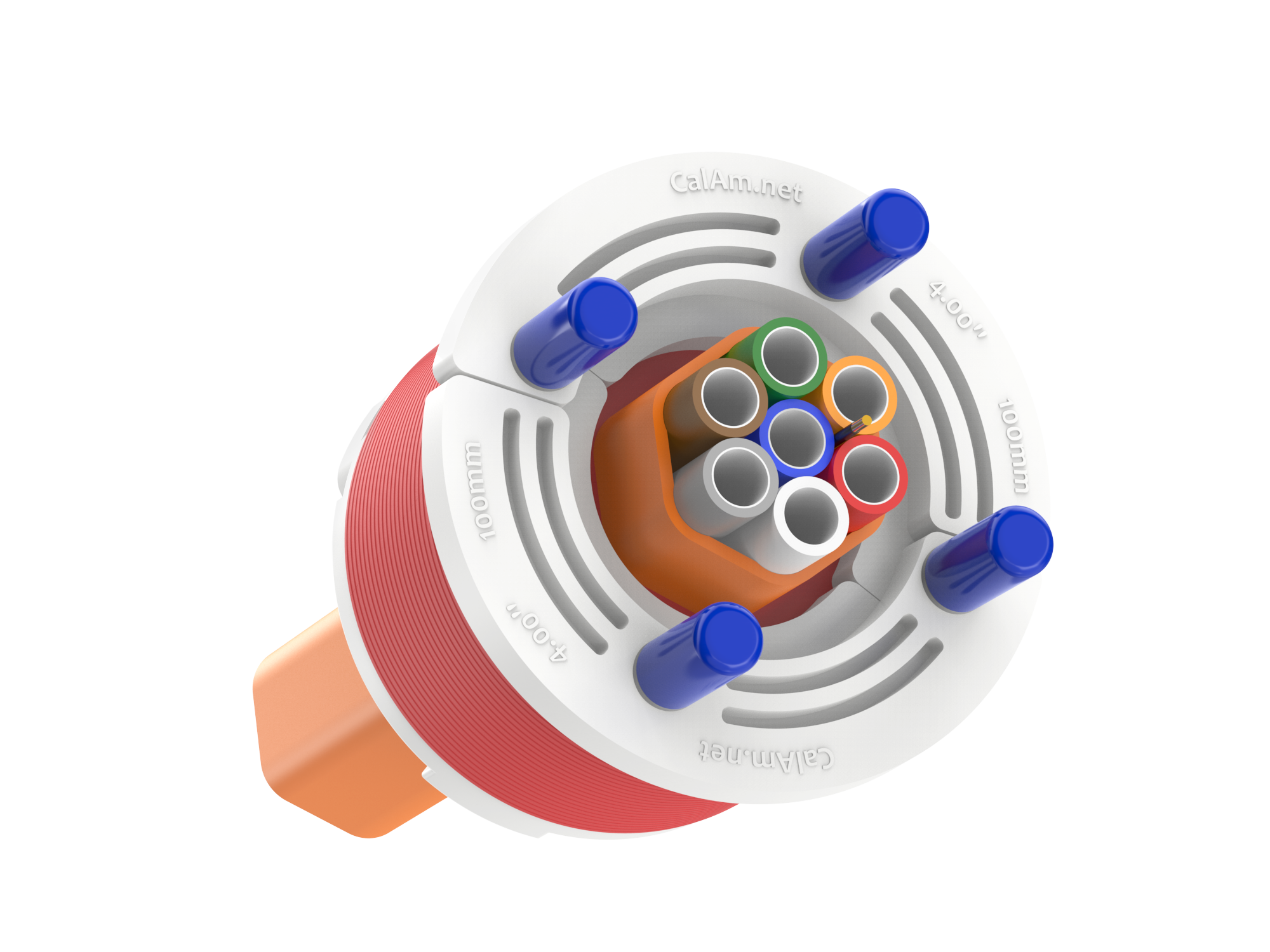

FuturePath Entry Seal

FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.
FuturePath Entry Seals are an effective solution to protect multiple pathway configurations from water, dirt, and rodents. These seals have a simple installation process with no specialty tools required. A split-design makes this product ideal for both new and existing FuturePath pathways and allows the seal to be placed at any location on the duct itself.

Features

  • Re-usable and removable
  • Prevents dirt and dust from entering FuturePath
  • Air- and water-resistant
  • Simple installation with no special tools required
  • Available in popular 2-way, 3-way, 4-way, and 7-way FuturePath configurations
  • Fit a conduit ID range of 3.92” – 4.25” *20095076 fits a conduit ID of 3.92” – 4.18"
Ask your question
FuturePath Entry Seal

Product Information

Description Part # OD Working Range (in) Packaging
FuturePath Entry Seal 2-way 12.7/10 & 14/10 20095071 1.08"-1.20" Each
FuturePath Entry Seal 3-way 12.7/10 & 14/10 20095072 1.12"-1.26" Each
FuturePath Entry Seal 4-way 16mm & 18/14 20095073 1.63"-1.87" Each
FuturePath Entry Seal 7-way 8.5mm 20095074 1.05"-1.30" Each
FuturePath Entry Seal 7-way 12.7/10 & 14/10 & 19-way 8.5 20095075 1.60"-1.80" Each
FuturePath Entry Seal 7-way 16mm & 18/14 20095076 2.01"-2.28" Each

Downloads

Specifications
DL_FuturePath Entry Seals 5.2024
